Thermally conductive TO-247 pad
  • Thermally conductive TO-247 pad
  • Thermally conductive TO-247 pad

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: Kerafol

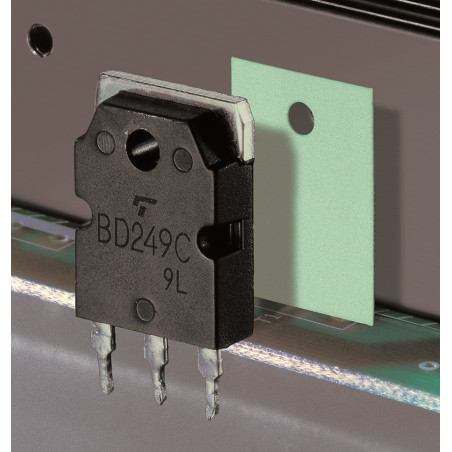

Thermally conductive TO-247 pad

A thermally conductive silicone pad made of KERATHERM 86/37 material. It is characterized by good thermal conductivity and excellent insulation properties. The material's adhesion facilitates its positioning during assembly.

Dimensions of the TO-247 thermally conductive pad:

  • Length: 21mm
  • Width: 17mm
  • Thickness: 0.225mm
  • Hole Diameter: 3.2mm
Properties Unit
Color - Green
Base Material - Silicone
Thermal Resistance K/W 0.32
Thermal Conductivity W/mK 1.8
Breakdown Voltage kV 8.0
Hardness Shore 00 65-75
Application Temperature °C -60 – 250 °C
Density g/cm³ 2.29
Flammability Class UL-94 V-0
Méně
Přečtěte si více
1,70 PLN
1,70 PLN Cena brutto / ks
1,38 PLN Čistá cena / ks
S DPH
Dostupnost: K dispozici množství ks: 100
ZEPTEJTE SE O PRODUKT close
Děkujeme za zaslání zprávy. Odpovíme co nejdříve.
ZEPTEJTE SE O PRODUKT close
Procházet
pošlete dotaz

Přidat do seznamu přání

musíš být přihlášen

A thermally conductive silicone pad made of KERATHERM 86/37 material. It is characterized by good thermal conductivity and excellent insulation properties. The material's adhesion facilitates its positioning during assembly.

Dimensions of the TO-247 thermally conductive pad:

  • Length: 21mm
  • Width: 17mm
  • Thickness: 0.225mm
  • Hole Diameter: 3.2mm
Properties Unit
Color - Green
Base Material - Silicone
Thermal Resistance K/W 0.32
Thermal Conductivity W/mK 1.8
Breakdown Voltage kV 8.0
Hardness Shore 00 65-75
Application Temperature °C -60 – 250 °C
Density g/cm³ 2.29
Flammability Class UL-94 V-0
