Termopad Softtherm 6000
  • Termopad Softtherm 6000
  • Termopad Softtherm 6000

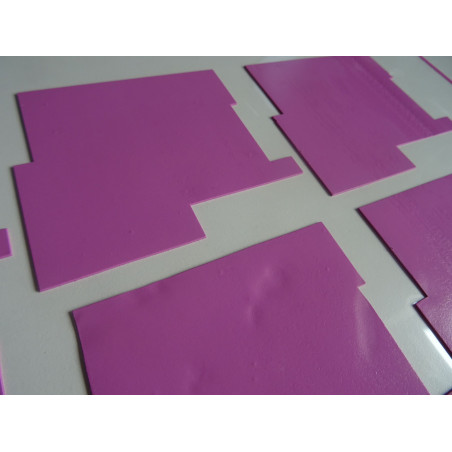

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: Kerafol

Termopad Softtherm 6000

  • tloušťka stěny
  • Izolace
  • Rth (K/W)

The SOFTTHERM® 6000 thermally conductive pad is characterized by very good thermally conductive and dielectric properties. Due to the excellent flexibility and repeatable behavior of the material under pressure, 6000 is perfect for applications where pressure is often present.

Product Features:

  • Very good electrical insulation
  • High thermal conductivity
  • excellent flexibility
  • material behavior under pressure

Aplications:

  • DC-DC converters
  • Power tools
  • Electric vehicles
  • High energy density batteries
properties Unit
Color - Pink
base material - Silicon
thermal resistance K/W 0.41
Thermal conductivity W/mK 6.0
breakdown voltage kV 4.0
Hardness Shore 00 55-75
application temperature °C -40 – 200 °C
Density g/cm³ 3.18
Flammability class UL-94 V-0
Thickness Mm 0.5 – 4.0

Packing

  • Sheets: 450 x 250 mm
  • Rollers:

500 mm width (without adhesive coating)
470 mm width (with adhesive coating)

  • Custom dimensions on request.
