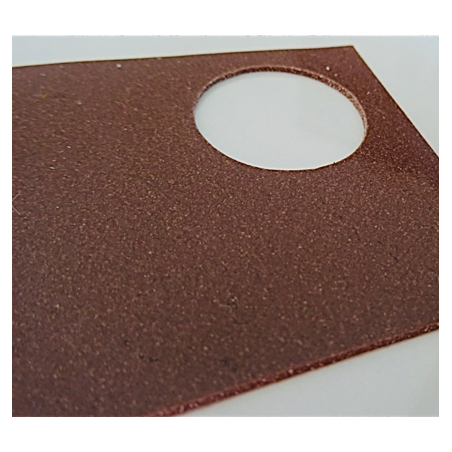

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: Kerafol

Non-silicone U110 thermal conductive pad

  • tloušťka stěny
  • Izolace
  • Rth (K/W)

Product Details:
Flexible, thermally conductive and electrically insulating pad based on ceramics. U110 is ideal for silicone sensitive applications as an alternative to silicone gap pads, offering high thermal conductivity and good electrical insulation properties.

Product Features:

  • low hardness
  • flexibility
  • good properties also over time

Applications:

  • electric vehicles
  • High energy density batteries
  • silicone sensitive applications
Properties Unit
Color - Brown
base material - Silicone free
Thermal Resistance* K/W 1.2
Thermal conductivity W/mK 2.0
breakdown voltage** kV 8.0
Hardness Shore 00 60-75
application temperature*** °C -40 – 110 °C
Density g/cm³ 1.87
Flammability class**** UL-94 V-0
Thickness Mm 0.5 – 2.0

* for a thickness of 1mm
** for a thickness of 0.5mm
***may increase hardness
****Based on Kerafol internal tests, UL compliant

Packing

  • Sheets: 450 x 250 mm
  • Rollers:

500 mm width (without adhesive coating)
470 mm width (with adhesive coating)

  • Custom dimensions on request.
