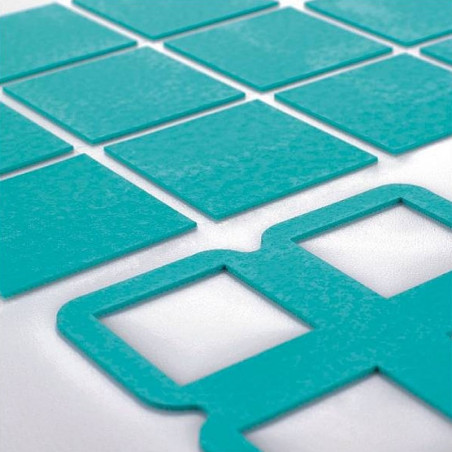

SOFTTHERM® is the ideal material for smoothing out even large component irregularities. Thanks to its outstanding compressibility, it produces an optimum thermal contact combined with electrical insulation. The supplied thicknesses range from 0.5 - 5.0 mm. Other thicknesses or shapes are available on request. | ![]() |
Product features
|
Packaging Sheets: 450 x 250 mm Rolls:
|
Material | Thermal conductivity | Thermal resistance | Breakdown voltage | Thickness** | Hardness |
---|---|---|---|---|---|
W/mK | K/W | kV | mm | Shore 00 | |
86/600 | 6.0 | 0.20 | 1.5 | 0.5 - 1.5 (+0.5) | 60-75 |
86/525 | 5.5 | 0.22 | 1.3* | 0.5 - 4.0 (+0.5) | 50-65 |
86/500 | 5.0 | 0.25 | 1.0 | 0.5 - 2.0 (+0.5) | 65-75 |
86/450 | 4.5 | 0.27 | 5.0 | 0.5, 1.0 | 65-75 |
86/325 | 3.0 | 0.41 | 6.0 | 0.5 - 3.0 (+0.5), 4.0 | 35-50 |
86/300 | 3.0 | 0.41 | 7.0 | 0.5, 0.8, 1.0, 1.5, 2.0 - 5.0 (+1.0) | 60-75 |
86/320 | 2.5 | 0.50 | 5.0 | 0.5, 1.0, 1.5, 2.0, 3.0, 4.0, 4.5 | 25-38 |
86/235 | 2.0 | 0.60 | 6.0 | 0.5 - 3.0 (+0.5), 4.0, 5.0 | 25-40 |
86/238 | 2.0 | 0.60 | 6.0 | 0.5, 1.0 - 3.0 (+1.0) | 30-45 |
86/225 | 2.0 | 0.60 | 6.0 | 0.5 - 4.0 (+0.5), 5.0 | 30-45 |
86/228 | 2.0 | 0.60 | 6.0 | 0.5, 1.0 | 30-45 |
86/125 | 1.5 | 0.80 | 6.0 | 0.5 - 3.0 (+0.5), 4.0 - 5.0 (+0.5) | 10-25 |
86/200 | 1.0 | 1.20 | 8.0 | 0.5 - 5.0 (+0.5) | 10-20 |
U 281 | 2.0 | 0.60 | 7.0 | 0.5, 1.0, 2.0 | 55-65 |
3500 | 3.5 | 0.36 | 5.0 | 1.0 – 4.0 (+0.5) | 45-65 |
(*) Rounded values.
(**) Parameters for bolded values.
