SÉRIE DRA3P
  • SÉRIE DRA3P

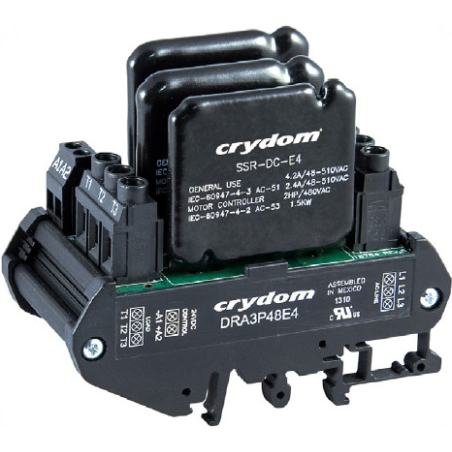

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: Crydom

SÉRIE DRA3P

Features

  • Semiconductor connector rated at 2.4 and 4.2 amperes
  • Load voltage range for 3-phase 48-510 VAC
  • Compatible with standard 35mm rails
  • LED status indicator
  • AC or DC control
  • Zero-crossing (for resistive loads) or instant-on (for inductive loads) outputs
  • Recognized by cUL, classified by IEC, compliant with CCC and RoHS, rated power
  • Built-in surge protection

Product Selection

Control Voltage 2.4A 4.2A
4-6 VDC DRA3P48D2 DRA3P48D4
18-28 VDC DRA3P48E2 DRA3P48E4
36-60 VDC DRA3P48C2 DRA3P48C4
90-140 VDC DRA3P48B2 DRA3P48B4
200-265 VDC DRA3P48A2 DRA3P48A4


AC Output Specification

Description 2.4A 4.2A
Maximum Load Current [Arms] 0.15 0.15
Maximum Leakage Current at Rated Voltage [mArms] 1.0 1.0
Maximum dV/dt at Off-state at Maximum Rated Voltage [V/usec] 500 500
Minimum dV/dt at Off-state at Maximum Rated Voltage [V/usec] 1.15 per channel 1.15 per channel
Maximum Single Pulse Current (50/60Hz) [Apk] 410/375 410/375
IEC 60947 Rated at 240 V, 40 degrees Celsius [kW] 0.37 0.37
IEC 60947 Rated at 380 V, 40 degrees Celsius [kW] 0.75 0.75
IEC 60947 Rated at 400 V, 40 degrees Celsius [kW] 0.75 0.75
Minimum Power Factor (at maximum load) 0.5 0.5
Min/Max Twisted/Solid Load Wire [IEC mm2] 0.5-4.0 0.5-4.0
Load Clamp Screw Torque Range [Nm] 1.36 1.36


Input Specification

Description DRA3P48Dx DRA3P48Ex DRA3P48Cx DRA3P48Bx DRA3P48Ax
Control Voltage Range 4 - 6 VDC 18 - 28 VDC 36 - 60 VAC 90 - 140 VAC 200 - 265 VAC
Rated Control Voltage 5 VDC 24 VDC 48 VAC 120 VAC 230 VAC
Minimum Turn-On Voltage 4 VDC 18 VDC 36 VAC 90 VAC 200 VAC
Minimum Turn-Off Voltage 2 VDC 4 VDC 10 VAC 20 VAC 60 VAC
Minimum Input Current [mA] 17 15 7.5 5 4.5
Maximum Input Current [mA] 35 25 13.5 8 5.7
Rated Input Impedance [Ohms] 120 1.2K 4.2K 16K 46K
Maximum Turn-On Time [msec] ½ cycle ½ cycle 20ms 20ms 20ms
Maximum Turn-Off Time [msec] ½ cycle ½ cycle 30ms 30ms 30ms
Min/Max Twisted/Solid Input Wire [IEC mm2] 0.5-2.5 0.5-2.5 0.5-2.5 0.5-2.5 0.5-2.5
Control Terminal Screw Torque Range [Nm] 0.485 0.485 0.485 0.485 0.485


General Specifications

Description Parameters
Dielectric Strength, Input to Output (50/60Hz) 3750 Vrms
Minimum Insulation Resistance (at 500V DC) 109 Ohms
Maximum Capacitance, Input/Output 20pF
Ambient Temperature Range (Operating) -20 to 60 degrees Celsius
Ambient Temperature Range (Storage) -40 to 85 degrees Celsius
LED Status Indicator for Control Input On: Green
Weight (Typical) 135 g
Housing Material (Bottom Cover) PVC Class V0 (UL94)
Housing Material (End Elements) Poliamid Class V0 (UL94)
