Proudové transformátory pro kabel, montáž lištu DIN
  • Proudové transformátory pro kabel, montáž lištu DIN

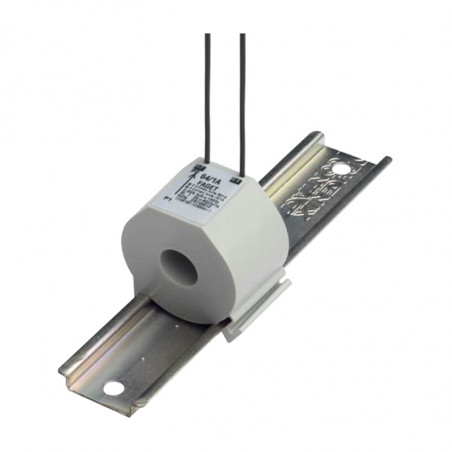

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: ELEQ

Proudové transformátory pro kabel, montáž lištu DIN

More often current has to be measured on a lower level of the installation. Because of that current values are relatively low and the available space is limited. Furthermore, the accuracy has to be sufficient for power measurement (at least class 1). The DRT49A12 combines these features in one product. Because of the unique construction, no additional soldering or crimping joints are required. This makes the DRT49A12 extremely reliable. The leads have a length of 1 m.

Properties:
• Designed for energy measurement
• Current ranges 16, 32 and 64A
• High accuracy (class 1)
• Very reliable, no soldering or crimping transitions
• Integrated rail mounting
• Super compact


Description Power Class Article nr.
64/1A 0,5VA 1 DRT49A12
32/1A (2 primary turns)
16/1A (3 primary turns)
Méně
Přečtěte si více

Zašlete dotaz

Máte zájem o tento produkt? Potřebujete další informace nebo individuální ceny?

Kontaktujte nás
ZEPTEJTE SE O PRODUKT close
Děkujeme za zaslání zprávy. Odpovíme co nejdříve.
ZEPTEJTE SE O PRODUKT close
Procházet
pošlete dotaz

Přidat do seznamu přání

musíš být přihlášen

More often current has to be measured on a lower level of the installation. Because of that current values are relatively low and the available space is limited. Furthermore, the accuracy has to be sufficient for power measurement (at least class 1). The DRT49A12 combines these features in one product. Because of the unique construction, no additional soldering or crimping joints are required. This makes the DRT49A12 extremely reliable. The leads have a length of 1 m.

Properties:
• Designed for energy measurement
• Current ranges 16, 32 and 64A
• High accuracy (class 1)
• Very reliable, no soldering or crimping transitions
• Integrated rail mounting
• Super compact


Description Power Class Article nr.
64/1A 0,5VA 1 DRT49A12
32/1A (2 primary turns)
16/1A (3 primary turns)
