1-Phasen-Halbleiterrelais GN-Serie
  • 1-Phasen-Halbleiterrelais GN-Serie

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: Crydom

1-Phasen-Halbleiterrelais GN-Serie

1) Nominal current 10 ÷ 125A
2) Nominal voltage 24 ÷ 660VAC
3) Input voltage signalization LED
4) Overvoltage build in protection
5) Insulation voltage 4000VAC
6)Versions with IP20 casing available
7)ULE79183, CSALR38595, TUV, CE compatible

Output parameters

Voltage range [Vrms]
24 - 280 Vac 48 - 660 Vac
peak voltage
600 V 1200 V
Load current [A]
10 25 50 75 100 125
Min load current [mA]
50 50 100 100 100 100
Test current(1 cycle) [A]
150 275 710 1050 1120 1600
I2[A2s]
110 380 2520 5500 6270 12800
Terminal/casing thermal resistance[°C/W]
0.5 0.4 0.25 0.155 0.155 0.15



Output parameters

Control voltage
3-32Vdc 18-36Vac 90-280Vac
Max  input current
14mA 16mArms 10mArms
Input resistance
Current regulator



General parameters

Operation temperature range[°C]
-20 - +80
I/O insulation voltage
4000Vrms
I/O capacity
2500 Vrms
Insulation voltage
8 pF (typowo)
Operation frequency range
47 + 63Hz
Casing material
UL94V0 (samogaszący)
Marking


Turn on at 0 voltage
nominal current nominal voltag Control voltage IP00 IP20
10A 24-280VAC 90-280Vac 84 134 001 84 137 001
3-32Vdc 84 134 000 84 137 000
48-660VAC 90-280Vac 84 134 101 84 137 101
4-32Vdc 84 134 100 84 137 100
25A 24-280VAC 90-280Vac 84 134 011 84 137 011
3-32Vdc 84 134 010 84 137 010
48-660VAC 90-280Vac 84 134 111 84 137 111
4-32Vdc 84 134 110 84 137 110
50A 24-280VAC 90-280Vac 84 134 021 84 137 021
3-32Vdc 84 134 020 84 137 020
48-660VAC 90-280Vac 84 134 121 84 137 121
4-32Vdc 84 134 120 84 137 120
75A 24-280VAC 90-280Vac 84 134 031 84 137 031
3-32Vdc 84 134 030 84 137 030
48-660VAC 90-280Vac 84 134 131 84 137 131
4-32Vdc 84 134 130 84 137 130
100A 24-280VAC 90-280Vac 84 134 041 84 137 041
3-32Vdc 84 134 040 84 137 040
48-660VAC 90-280Vac 84 134 141 84 137 141
4-32Vdc 84 134 140 84 137 140
125A 24-280VAC 90-280Vac 84 134 081 84 137 081
3-32Vdc 84 134 080 84 137 080
48-660VAC 90-280Vac 84 134 181 84 137 181
4-32Vdc 84 134 180 84 137 180


immediate turn on
nominal current nominal voltag Control voltage IP00 IP20
10A 24-280VAC
48-660VAC
3-32Vdc 84 134 200 84 137 200
4-32Vdc 84 134 300 84 137 300
25A 24-280VAC
48-660VAC
3-32Vdc 84 134 210 84 137 210
4-32Vdc 84 134 310 84 137 310
50A 24-280VAC
48-660VAC
3-32Vdc 84 134 220 84 137 220
4-32Vdc 84 134 320 84 137 320
75A 24-280VAC
48-660VAC
3-32Vdc 84 134 230 84 137 230
4-32Vdc 84 134 330 84 137 330
100A 24-280VAC
48-660VAC
3-32Vdc 84 134 240 84 137 240
4-32Vdc 84 134 340 84 137 340
125A 24-280VAC
48-660VAC
3-32Vdc 84 134 280 84 137 280
4-32Vdc 84 134 380 84 137 380

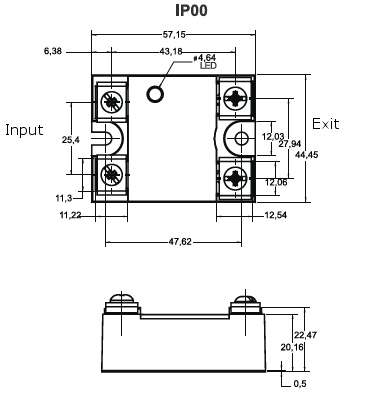

Dimensions[mm]
]

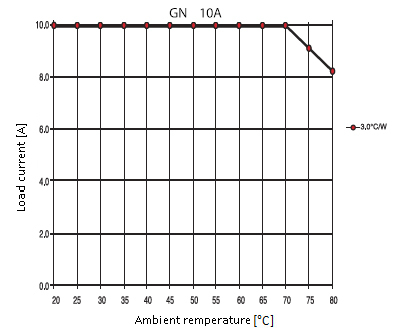

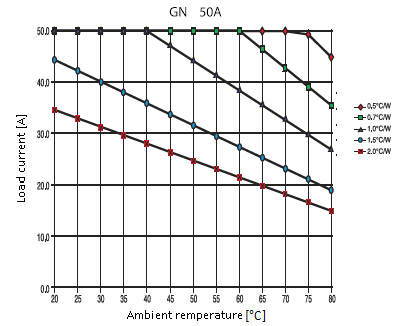

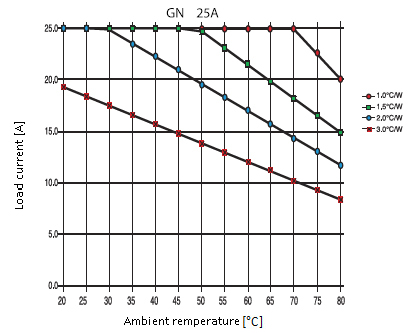

Load current vs ambient temperature
