Hersteller: Cosel

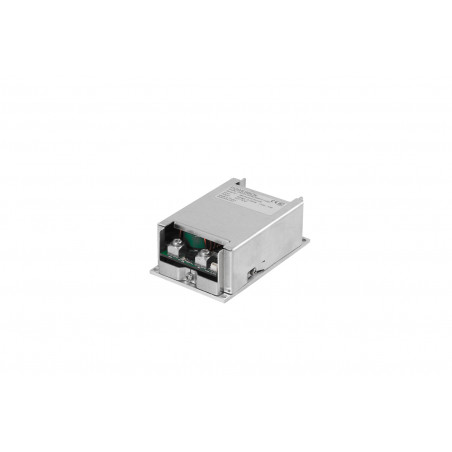

DC/DC-Wandler der DAC-Serie

Key Product Features

  • Military/Defence Compliant
  • Conduction Cooling
  • Reverse Polarity Protection
  • Series & Parallel Operation
  • Up to 143V DC Input
  • Up to 150W output power

Industries

  • Communication
  • Energy
  • Industrial
  • Mil Def Compliant
  • Transportation

Technical Features

  • < 1U High
  • Parallel Function
  • Remote On/Off
DAC Models Input Voltage Output Type Output Voltages Output Power
DAC100-110 DC66 - 154V Single 12V, 15V, 24V, 28V, 36V, 48V 100W
DAC100-24 DC9 - 36V, DC18 - 36V Single 12V, 15V, 24V, 28V, 36V, 48V, 5V, 8V 100W
DAC100-24W DC9 - 36V Single 12V, 15V, 24V, 28V, 36V, 48V 100W
DAC100-48 DC36 - 75V Single 5V, 8V 100W
DAC100-72 DC43 - 110V Single 8V 100W
DAC125-24 DC18 - 36V Single 5V, 12V 50 - 125W
DAC150-110 DC66 - 154V Single 48V 150W
DAC150-24 DC18 - 36V Single 12V, 15V, 24V, 28V, 48V 150W
DAC150-48 DC36 - 75V Single 8V, 12V, 15V, 24V, 28V, 36V, 48V 150W
DAC150-72 DC43 - 110V Single 12V, 15V, 24V, 28V, 36V, 48V 150W
DAC250-24 DC18 - 36V Single 12V 50W
DAC50-110 DC66 - 154V Single 3.3V, 48V 50 - 150W
DAC50-24 DC9 - 36V, DC18 - 36V Single 3.3V, 5V, 12V, 15V, 24V, 28V, 36V, 48V 50 - 150W
DAC50-24W DC9 - 36V Single 3.3V, 5V 50W
DAC50-48 DC36 - 75V Single 3.3V, 5V, 8V, 12V, 15V, 24V, 28V, 36V, 48V 50 - 150W
DAC50-72 DC43 - 110V Single 5V, 12V, 15V, 24V, 28V, 36V, 48V 100 - 150W
DAC75-110 DC66 - 154V Single 5V, 8V 75W
DAC75-24 DC18 - 36V Single 3.3V 75W
DAC75-48 DC36 - 75V Single 3.3V, 5V, 12V, 15V, 24V, 28V, 48V 75W
DAC75-72 DC43 - 110V Single 3.3V 75W
