Hersteller: Ambrell

Aushärtender Epoxidklebstoff auf Aluminium-Kopierwalze

Curing epoxy on aluminum copier roller assembly


Objective: Heat the end of an aluminum copier roller to 400 ºF (200 ºC) to cure epoxy


Material: Aluminum roller 4.75” (120mm) diameter, 2’ (0.6m) long with 1.5” (38.1mm) thick plug at end


Temperature: 400 ºF (200 ºC)


Frequency: 112 kHz


Equipment:
  • Ambrell 15 kW induction heating system, equipped with a remote workhead containing eight 1.0μF capacitors for a total of 2.0μF;
  • An induction heating coil designed and developed specifically for this application.

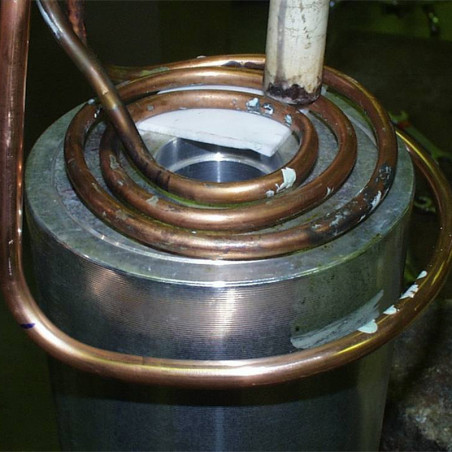

Process: A four turn helical pancake coil is used to heat the end of the copier roller assembly. The assembly is heated 90 seconds to cure the adhesive.


Benefits: Induction heating provides:

  • Faster process time;
  • Hands-free heating that involves no operator skill for manufacturing;
  • Even distribution of heat between tube and end plug.
