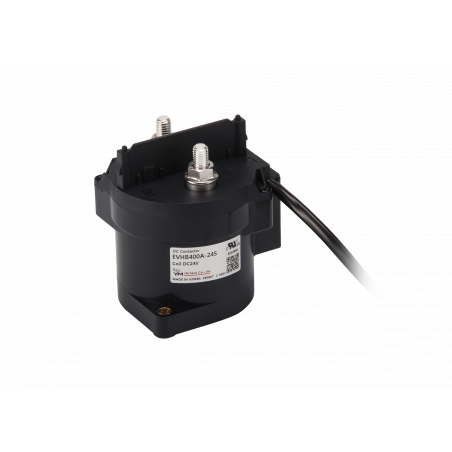

DC EVHB400 Relais
  • DC EVHB400 Relais

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: YM Tech

DC EVHB400 Relais

  • EVHB400

Application

  • Charging System,
  • Battery Energy Storage System,
  • Solar System,
  • Fuel Cell Vehicle

Magnet coil ratings

Nominal voltage(V)Inrush Coil current 150ms (Max.)Holding Coil currentPick-up voltage (V)Max.Drop-out voltage (V)Min.Holding voltage (V)Min.Max. voltage (V)Remark
12S 12V 2.6A 0.45A 9VDC 6VDC 7.5VDC 18VDC PWM economizer
24S 24V 1.4A 0.20A 18VDC 12VDC 15.0VDC 32VDC
AS 12-36V 2.6A 0.15-0.4A 9VDC 6VDC 7.5VDC 36VDC
12D 12V 2.8A 0.35A 9VDC 6VDC 7.5VDC 18VDC Double coil economizer
24D 24V 2.4A 0.25A 18VDC 12VDC 15.0VDC 32VDC

Contact ratings

Type1Pole Resistor load
Max. Continuous current (wire size 2400) 400A
Max. switching current 600VDC 500A
1000VDC 500A
1500VDC 300A
Contact rating switching voltages 12-1500VDC
Voltage drop across contacts per 100A 30mV Max
Min. permissible load 12VDC 0.5A
Description S.P On/Off (a)
Contact Arrangement, auxiliary contacts 1Form A (SPST—NO.)
General Aux. Contact Current, Max. 2A 30VDC / 3A 125VAC
General Aux. Contact Current, Min. 100mA 8VDC
Gold alloy Aux. Contacts Max. (Low levelcircuit type) 0.1A 30VDC / 0.1A 30VAC
Gold alloy Aux. Contacts Min. (Low level circuit type) 1mA 5VDC / 1mA 5VAC
