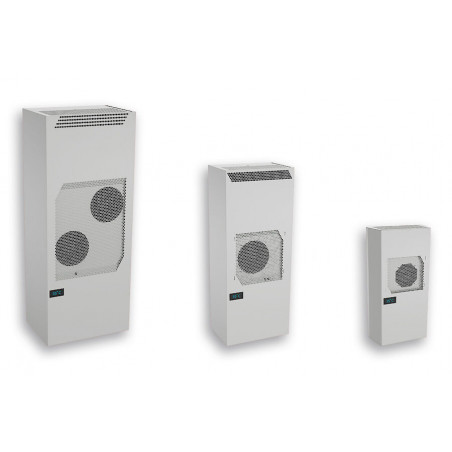

Klimagerät ComPact Line

COMPACT INDOOR - the economical cooling solution

Thanks to the nano-coated condenser, the COMPACT INDOOR enclosure cooling units can be used for most industrial applications without filters. The large lamellar division of the condenser (> 4 mm) allows dust and even smaller particals to flow through. This reduces the risk of the condenser clogging, resulting in longer service and maintenance intervals. Various filter media can be installed for heavily contaminated environments.​


The cooling capacities range from 320 W to 4 kW. As standard, the ComPact Line air conditioners come in powder-coated (RAL 7035) sheet metal and can be ordered either for wall mounting or recessed installation. For applications that require hygiene or a high level of corrosion protection, the devices can be equipped with stainless steel housing.

TYPE MOUNTING COOLING CAPACITY L35L35
KG 4304 Wall mounted 320 W @ 50 Hz
360 W @ 60 Hz
KG 4305 Wall mounted / Recessed 550 W @ 50 Hz
620 W @ 60 Hz
KG 4308 Wall mounted / Recessed 750 W @ 50 Hz
780 W @ 60 Hz
KG 4309 Wall mounted / Recessed 850 W @ 50 Hz
880 W @ 60 Hz
KG 4310 Wall mounted / Recessed 1.00 kW @ 50 Hz
1.08 kW @ 60 Hz
KG 4315 Wall mounted / Recessed 1.50 kW @ 50 Hz
1.63 kW @ 60 Hz
KG 4320 Wall mounted / Recessed 2 kW @ 50 Hz
2 kW @ 60 Hz
KG 4325 Wall mounted / Recessed 2.50 kW @ 50 Hz
2.51 kW @ 60 Hz
KG 4330 Wall mounted / Recessed 3 kW @ 50 Hz
3 kW @ 60 Hz
KG 4340 Wall mounted / Recessed 4 kW @ 50 Hz
4 kW @ 60 Hz
