Hersteller: SEIFERT mtm SYSTEM

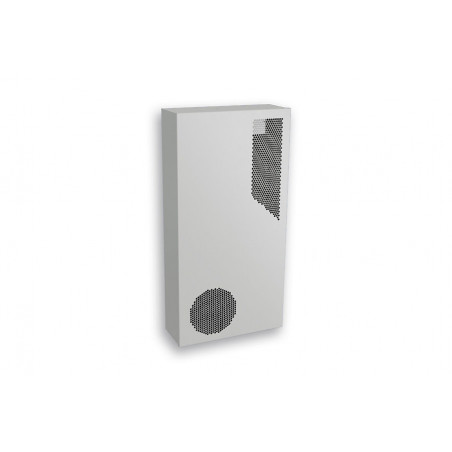

SOLITHERM HEX Luft-/Luft-Wärmetauscher

SOLITHERM HEX - air / air heat exchangers

The functional principle of an air-air heat exchanger is quite simple; the heat exchanger core transfers the heat from the internal circuit to the ambient circuit through an aluminum surface, so there is no direct contact or mix between internal and external air.​


SLIMLINE HEX Air / air heat exchangers are ideal for both indoor and outdoor applications from 65 W/K heat exchanger output. Based on our high-performance aluminum vacuum brazing technology, they offer top values ​​in heat exchanger performance. The most important parameters can be easily set and read using the electronic control with LED color display. Of course, all common IP and NEMA requirements are met. The high-end vacuum brazing technology used at Seifert, is best-in-class thermal dissipation and has the most compact footprint in the industry. The heat exchanger performance ranges from 7 W/K up to 180 W/K.

TYPE MOUNTING HEAT EXCHANGER PERFORMANCE MATERIAL HOUSING
LT 58007 Wall mounted 7 W/K Mild steel, powder coated
LT 58014 Wall mounted 14 W/K Mild steel, powder coated
LT 58032 Wall mounted 32 W/K Mild steel, powder coated
LT 58043 Wall mounted 43 W/K Mild steel, powder coated
LT 58065 Wall mounted 65 W/K Mild steel, powder coated
LT 58100 Wall mounted 100 W/K Mild steel, powder coated
LT 58180 Wall mounted 180 W/K Mild steel, powder coated
