Hersteller: TEXA industries

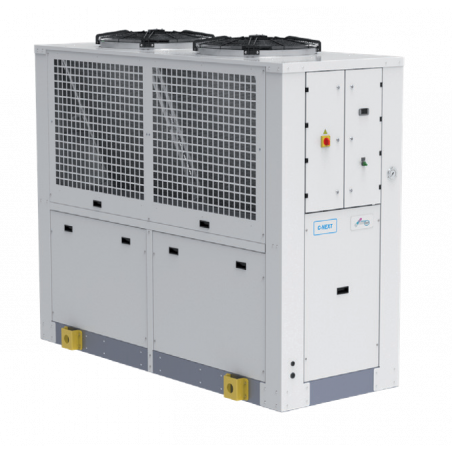

TALG9-O6 Größe 5 Industrielle Kaltwassersätze

TALG9-O6 Size 5

Industrial water chillers

EVAPORATOR
Brazed stainless-steel plate model.
AIR CONDENSER
Microchannel condensing coil, complete with safety grille.
AXIAL FAN
Axial fan, complete with thermal cut-out and safety grille.
LIQUID CIRCUIT
Non-ferrous liquid circuit composed of stainless-steel centrifugal pump, plastic storage tank complete with drain valve, electrical level, 0-10 bar pressure gauge, differential pressure switch protecting the water flow, automatic by-pass and regulation sensor.
ELECTRICAL PANEL
With main disconnect switch, relay motor protection, phase sequence relays.
MANAGEMENT AND CONTROL
The TX350C control unit manages the operation of the chiller and provides complete operator alarm diagnostics. An on-off contact allows the machine to be switched on remotely. Illuminated control selector. RS485 connection. Possibility of remote display for machine regulation.
PAINT/COATING
Standard colour: RAL 7035 textured.
MAIN ACCESSORIES
FL - Flow switch with alarm contact
HR - Fluid heating element
OM - Unit built for outdoor operation down to -10 °C ambient temp.
OML - Unit built for outdoor operation down to -20 °C ambient temp.
FP - Polyurethane air filter
TD - Differential fluid temperature management (two sensors)
BGC - Hot gas bypass for +/- 1 K temperature precision
LS - Liquid circuit for laser application
- HIGH-pressure pump version "H" - 5 bar
STRUCTURE
In powder-coated steel sheet, RAL 7035 textured finish. Easily removed panels.
COMPRESSOR
Hermetic scroll compressor, cooled by the refrigerant, complete with thermal cut-out.
REFRIGERATION CIRCUIT
Complete with charging port, liquid receiver, drier filter, thermostatic valve, high- and low-pressure pressure switch, R410A refrigerant. Standard 2- or optional 4-step cooling power regulation (standard on TALO6).
