Hersteller: TEXA industries

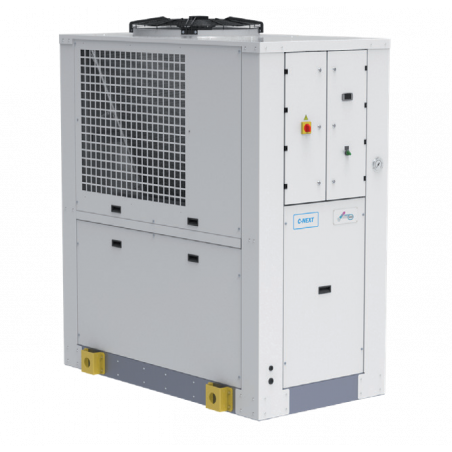

TAOD0-F8 Größe 4 Industrielle Ölkühler

TAOD0-F8 Size 4

Industrial oil chillers

EVAPORATOR
Brazed stainless-steel plate model.
AIR CONDENSER
Microchannel condensing coil, complete with safety grille.
AXIAL FAN
Axial fan, complete with thermal cut-out and safety grille.
HYDRAULIC CIRCUIT
Hydraulic circuit with screw pump without tank, with maximum available pressure 10 bar, 0-25 bar oil pressure gauge, regulation sensor, protective flow switch.
ELECTRICAL PANEL
With main disconnect switch, relay motor protection, phase sequence relays.
MANAGEMENT AND CONTROL
The TX350C control unit manages the operation of the chiller and provides complete operator alarm diagnostics. An on-off contact allows the machine to be switched on remotely. Illuminated control selector. RS485 connection. Possibility of remote display for machine regulation.
PAINT/COATING
Standard colour: RAL 7035 textured.
MAIN ACCESSORIES
BA - Mechanical bypass valve protecting the pump
LTA - Operation at low ambient temperatures
OM - Unit built for outdoor operation down to -10 °C ambient temp.
FP - Polyurethane air filter
TD - Differential fluid temperature management (two sensors)
BGC - Hot gas bypass for +/- 1 K temperature precision
UL1 - UL certified electrical panel and components
- Outdoor installation optionals
STRUCTURE
In powder-coated steel sheet, RAL 7035 textured finish. Easily removed panels.
COMPRESSOR
Hermetic scroll compressor, cooled by the refrigerant, complete with thermal cut-out.
REFRIGERATION CIRCUIT
Complete with charging port, liquid receiver, drier filter, thermostatic valve, high- and low-pressure pressure switch, R410A refrigerant. Optional 2-step cooling power regulation (standard on TAOF8).
Weniger
Weiterlesen

Senden Sie eine Anfrage

Interessieren Sie sich für dieses Produkt? Benötigen Sie zusätzliche Informationen oder individuelle Preise?

Kontaktiere uns
FRAGEN SIE NACH DEM PRODUKT close
Vielen Dank für die Zusendung Ihrer Nachricht. Wir werden so schnell wie möglich antworten.
FRAGEN SIE NACH DEM PRODUKT close
Durchsuche
Senden Sie eine Anfrage

Zur Wunschliste hinzufügen

Sie müssen eingeloggt sein

TAOD0-F8 Size 4

Industrial oil chillers

EVAPORATOR
Brazed stainless-steel plate model.
AIR CONDENSER
Microchannel condensing coil, complete with safety grille.
AXIAL FAN
Axial fan, complete with thermal cut-out and safety grille.
HYDRAULIC CIRCUIT
Hydraulic circuit with screw pump without tank, with maximum available pressure 10 bar, 0-25 bar oil pressure gauge, regulation sensor, protective flow switch.
ELECTRICAL PANEL
With main disconnect switch, relay motor protection, phase sequence relays.
MANAGEMENT AND CONTROL
The TX350C control unit manages the operation of the chiller and provides complete operator alarm diagnostics. An on-off contact allows the machine to be switched on remotely. Illuminated control selector. RS485 connection. Possibility of remote display for machine regulation.
PAINT/COATING
Standard colour: RAL 7035 textured.
MAIN ACCESSORIES
BA - Mechanical bypass valve protecting the pump
LTA - Operation at low ambient temperatures
OM - Unit built for outdoor operation down to -10 °C ambient temp.
FP - Polyurethane air filter
TD - Differential fluid temperature management (two sensors)
BGC - Hot gas bypass for +/- 1 K temperature precision
UL1 - UL certified electrical panel and components
- Outdoor installation optionals
STRUCTURE
In powder-coated steel sheet, RAL 7035 textured finish. Easily removed panels.
COMPRESSOR
Hermetic scroll compressor, cooled by the refrigerant, complete with thermal cut-out.
REFRIGERATION CIRCUIT
Complete with charging port, liquid receiver, drier filter, thermostatic valve, high- and low-pressure pressure switch, R410A refrigerant. Optional 2-step cooling power regulation (standard on TAOF8).
