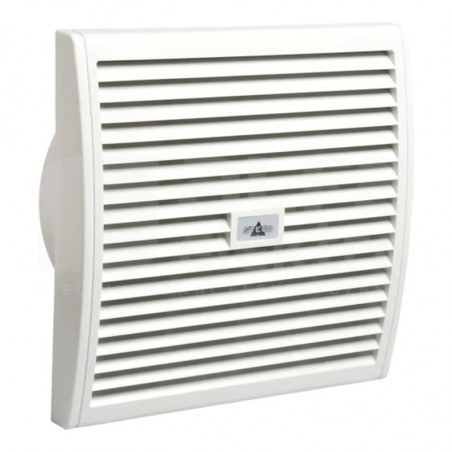

![Lüfterfilter FF 018: 550 m³ / h Lüfterfilter FF 018: 550 m³ / h](https://www.dacpol.eu/34691-large_default/lufterfilter-ff-018-550-m-h.jpg)
![Lüfterfilter FF 018: 550 m³ / h Lüfterfilter FF 018: 550 m³ / h](https://www.dacpol.eu/34691-large_default/lufterfilter-ff-018-550-m-h.jpg)
Sie müssen eingeloggt sein
Category
Montaż urządzeń
Modernizacja induktorów
Urządzenia indukcyjne
asd
Fotos dienen nur zu Informationszwecken.
please use latin characters
Filter fans are used to provide an optimum climate in enclosures. The interior temperature of an enclosure can be reduced by channelling cooler filtered outside air into the enclosure thus expelling heated internal air. The resulting air flow prevents formation of localised hot pockets and protects the electronic components from over - heating. The high-performance axial fan provides high air circulation. These filter fans are intended for indoor use. The plastic used for the hood is highly UV light resistant.
Technical dataAxial fan, ball bearing | service life 50,000h at +25°C (+77°F), 65% RH fan body aluminium, rotor metal. |
Connection | 3-pole clamp for 2.5mm², clamping torque 0.8Nm max. |
Casing (filter fan and exit filter) | plastic according to UL94 V-0, light grey |
Mounting frame |
with double-sided industrial adhesive band for fixing to the outside of enclosure; certain operating circumstances can make the additional use of screws necessary (see drilling template); |
Filter mat |
G4 acc. to DIN EN 779, filtering degree 94% |
Filter material | synthetic fibre with progressive construction, temperature resistant to +100°C, self-extinguishing class F1, moisture resistant to 100% RH, reusable - cleaning by washing or vacuuming |
Operating/Storage temperature | - 25°C - +70°C |
Protection class | I (eathed) |
Filter mat | 247x247 mm |
---|---|
G4 (1 packing = 3 pcs) | Art. No. 08608.0-00 |
F5 (1 packing = 3 pcsi) | Nr art. 08609.0-00 |
![]() |
![]() |
![]() |
Art. No. | Operating voltage |
Air volume, free flow | Air volume with exit filter | Curent consuption |
Power | Average noise level (DIN EN ISO 4871) | Depth in ecclosure | Enclosure cut-out |
Weight (approx.) |
Protection type |
---|---|---|---|---|---|---|---|---|---|---|
01805.0-00 |
AC 230 V, 50 Hz | 550 m³/h | 300 m³/h | 300 mA | 64W | 65dB(A) | 107 mm | 250 x 250 mm + 0,4 | 2,70 kg | IP54 |
01805.0-01 |
AC120V, 60 Hz* | 550 m³/h | 300 m³/h | 780 mA | 85 W | 65 dB (A) | 107 mm | 250 x 250 mm + 0,4 | 2,70 kg | IP54 |
Art. No. | Depth in enclosure | Enclosure cut-out |
Weight (approx.) |
Filter mat | Protection type |
---|---|---|---|---|---|
11803.0-00 |
22 mm | 250 x 250 mm + 0,4 | 1,00 kg | G4 acc. to DIN EN 779, filtering degree 94% | IP54* |
Art. No. | Operating voltage |
Air volume, free flow | Air volume with exit filter | Curent consuption |
Power | Average noise level (DIN EN ISO 4871) | Depth in ecclosure | Enclosure cut-out |
Weight (approx.) |
---|---|---|---|---|---|---|---|---|---|
21805.0-00 |
AC230V, 50 Hz | 550 m³/h | 300 m³/h | 300 mA | 64 W | 65 dB (A) | 107 mm | 250 x250 mm + 0,4 | 2,70 kg |
21805.0-01 |
AC 120V, 60Hz* | 550 m³/h | 300 m³/h | 780 mA | 85 W | 65 dB (A) | 107 mm | 250 x250 mm + 0,4 | 2,70 kg |
