Hersteller: Trafox

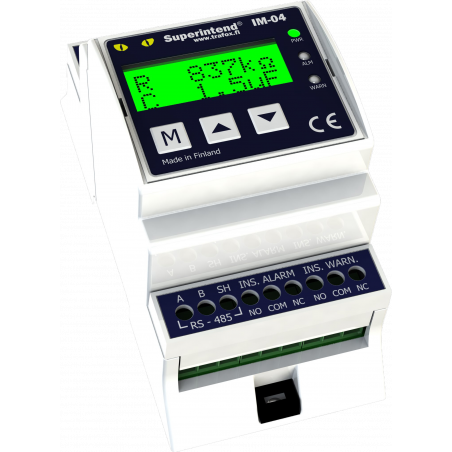

IM-0PV Isolationsüberwachungsrelais für Photovoltaik

IM-04PV

INSULATION CONTROL RELAY FOR PHOTOVOLTAICS

IM-04PV WITH HVC ATTACHMENTS

  • Noise immunity, FFT
  • For voltages up to 1500 VDC with the appropriate adapter
  • Suitable for use in other systems
  • high voltage AC and DC
  • Quality and reliability from Finland

MEASUREMENT SPECIFICATION
HVC-15.100 / HVC-15.1000 / HVC-15.2000

Maximum DC input voltage 1500 V DC
Maximum AC input voltage 1081 VAC
Resistance measuring range 5kΩ…1MΩ / 10kΩ…1MΩ / 10kΩ…1MΩ with an accuracy of better than 15%
Capacitance measuring range 1 uF...100/1000/1000 uF
Alarm range 10kΩ…1MΩ
Impedance measurement 308 kΩ / 99 kΩ / 70 kΩ
Test voltage 25 Vp

POWER SPECIFICATIONS

Nominal input voltage 110-240 VAC, 110-300 VDC
Line frequency 48 - 62 Hz

NORMS

Measurement IEC 61557-8
IEC 62109-2
Security IEC 61010-1
EN61800-5-1
EMC IEC 61326-2-4
