Thermische Relais PTC-Typ MS220C
  • Thermische Relais PTC-Typ MS220C

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: ZIEHL

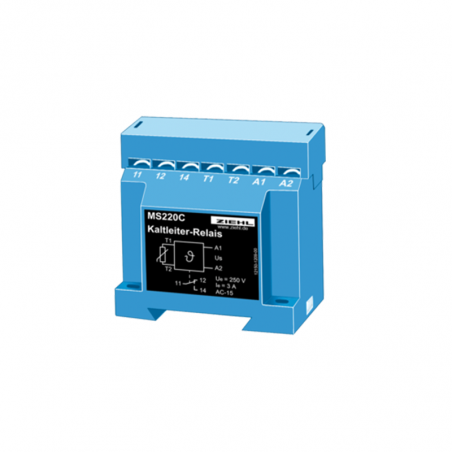

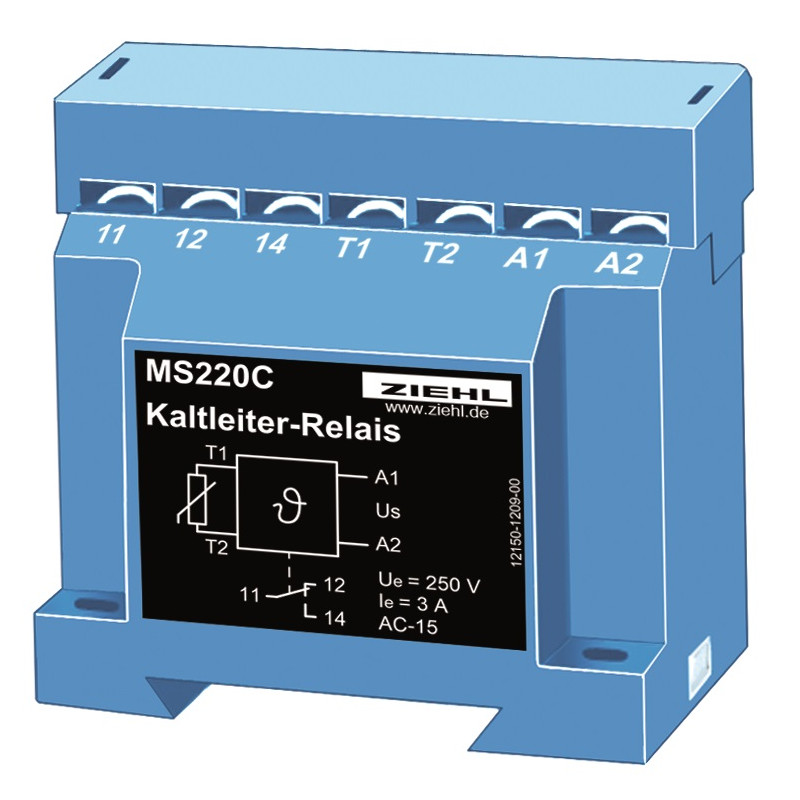

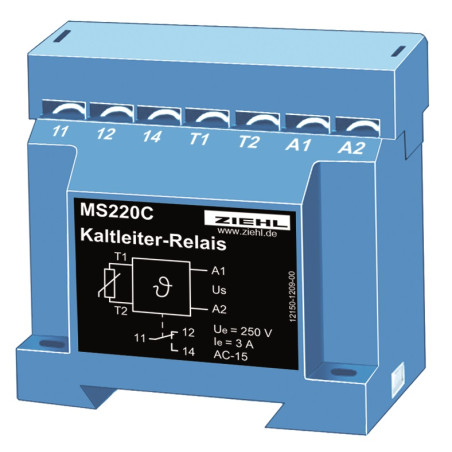

Thermische Relais PTC-Typ MS220C

This compact device is the smallest version of all our PTCresistor relays.
  • terminals outside
  • protection terminals IP 20
  • Relays 1 change-over-contact (co)

Part number:

T221830 24 V AC / DC
T221804 AC 220-240 V



Technical data


Rated supply voltage Us AC 220 - 240 V ± 10% 50/60 Hz ≤ 2 VA
AC / DC 24 V, AC ± 10 / -15%, DC + 25 / -20%, <1 W, <2 VA,
without potential separation
Connectable PTC resistors 1...6 PTC according DIN VDE V 0898-1-401 (formerly DIN 44081/82)
Switching poin <4000 Ω
Output relay 1 change-over-contact (co)
Type of contact Type 2 (see general technical information)
Test conditions see general technical information
Rated ambient temperature -20 ... + 55 ° C
Dimensions h x w x d Design C: 72 x 33 x 60 [mm]
Attachment on 35 mm DIN rail according to EN 60 715 or screws M4
Protection Housing/Terminals IP30 / IP20
Weight approx. 120 g

Senden Sie eine Anfrage

Interessieren Sie sich für dieses Produkt? Benötigen Sie zusätzliche Informationen oder individuelle Preise?

Kontaktiere uns
FRAGEN SIE NACH DEM PRODUKT close
Vielen Dank für die Zusendung Ihrer Nachricht. Wir werden so schnell wie möglich antworten.
FRAGEN SIE NACH DEM PRODUKT close
Durchsuche

Zur Wunschliste hinzufügen

Sie müssen eingeloggt sein

This compact device is the smallest version of all our PTCresistor relays.
  • terminals outside
  • protection terminals IP 20
  • Relays 1 change-over-contact (co)

Part number:

T221830 24 V AC / DC
T221804 AC 220-240 V



Technical data


Rated supply voltage Us AC 220 - 240 V ± 10% 50/60 Hz ≤ 2 VA
AC / DC 24 V, AC ± 10 / -15%, DC + 25 / -20%, <1 W, <2 VA,
without potential separation
Connectable PTC resistors 1...6 PTC according DIN VDE V 0898-1-401 (formerly DIN 44081/82)
Switching poin <4000 Ω
Output relay 1 change-over-contact (co)
Type of contact Type 2 (see general technical information)
Test conditions see general technical information
Rated ambient temperature -20 ... + 55 ° C
Dimensions h x w x d Design C: 72 x 33 x 60 [mm]
Attachment on 35 mm DIN rail according to EN 60 715 or screws M4
Protection Housing/Terminals IP30 / IP20
Weight approx. 120 g
