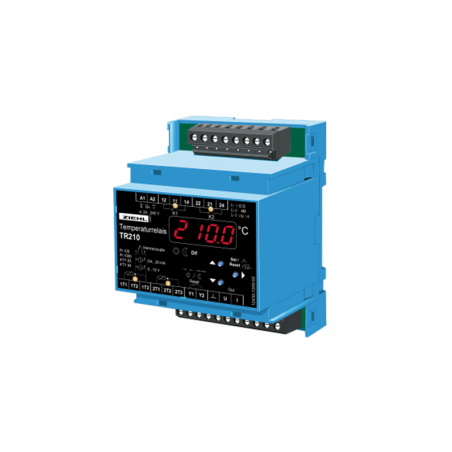

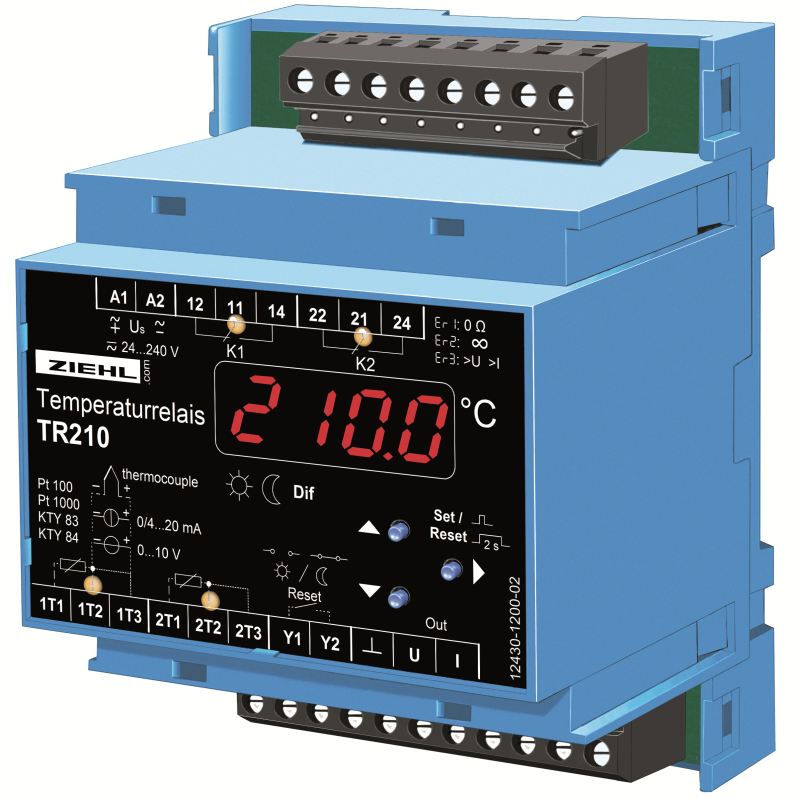

Thermisches Relais TR210.
  • Thermisches Relais TR210.

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: ZIEHL

TR210 Thermalrelais

TR210 jest używany jako The TR210 is used as

  • General temperature protection of machines and installations
  • Temperature control unit, also for cooling applications
  • Difference temperature controller unit for air-conditioning technology

Overview of functions

  • 2 Sensor inputs0.1 °C resolution between –199.9...999.9 °C
    • Pt 100, Pt 1000, KTY 83 or KTY 84 in 2- or 3-wire configuration
    • Thermocouples Type B, E, J, K, L, N, R, S, T
    • Input signal DC 0-10 V; DC 0/4-20 mA
  • 2 Relay outputs (each 1 change-over contact)
  • 1 Analogue output DC 0-10 V or 0/4-20 mA for parameterizing (not potentially separated from the inputs)
  • Universal power supply AC/DC 24-240 V
  • Several selectable programs
  • Storage and indication of the measured MIN- und MAX-values
  • pluggable terminals

Technical data

Rated supply voltage Us AC / DC 24 - 240 V
Tolerance DC 20, 4–297 V
Tolerance AC 20 - 264 V 50/60 Hz
Power consumption < 3 W < 7 VA
Relay output 2 x 1 styk przełączający
Switching voltage max. AC 415 V.
Switching current max. 5 A.
Switching capacity max. 1250 VA (obciążenie rezystancyjne)
maks. 120 W przy 24 V DC
UL electrical ratings: 250 V ac, 5 A, rezystancyjny
E214025 240 V ac, 1/2 KM
120 V ac, ¼ KM
B 300 - pilot, UL 508
Enclosure Design V4, switchgear mounting
Mounting height 55 mm
Width 4 TE
Dimensions (width x height x depth) 70 x 90 x 58 mm
Wire connection, one wire each 1 x 1.5 mm2
Stranded wire with insulated ferrules each 1 x 1.0 mm2
Torque 0.5 Nm (3,6 lb.in)
Protection class housing IP 30
Protection class terminal IP 20
Installation Snap mounting on mounting rail 35 mm according to EN 60 715 or with screws M 4 (additional bar in scope of delivery)
Weight approx. 200 g
