Spannungsfrequenz24 V DC (używa dostaw NEC klasy 2)
MontagemethodenWpuszczany
Anlaufstrom3.7 A
Maximaler Strom2.5 A
Maximale Leistung60 W
Kühlleistung von L35L3550 W
Ausschnittsmaß170 x 120 mm
Spannung L35L352.4 A
Nennleistung L35L3558 W
Luftvolumenstrom (System / ungehindert)Obieg powietrza z otoczenia - 64 / 170 m³/h Obieg powietrza szafy - 23 / 72 m³/h
Gewicht3.3 kg

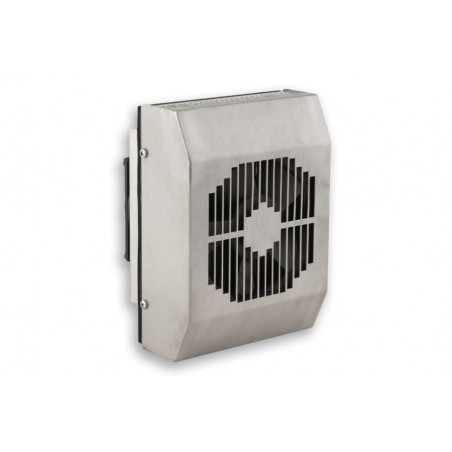

Features suitable for small enclosures and small control panels for Indoor and Outdoor applications virtually maintenance free can be mounted in any position (depending on the installation the condensate management may need to be adjusted) Brand Name SoliTherm Peltier Order Number 3050303 Housing Material Stainless steel AISI 304 (V2A) Ingress Protection IP 66, NEMA / UL Type 4X Note The torque for the mounting nuts should be 4.5 Nm. Approvals CE, cURus
