Hersteller: RAFI

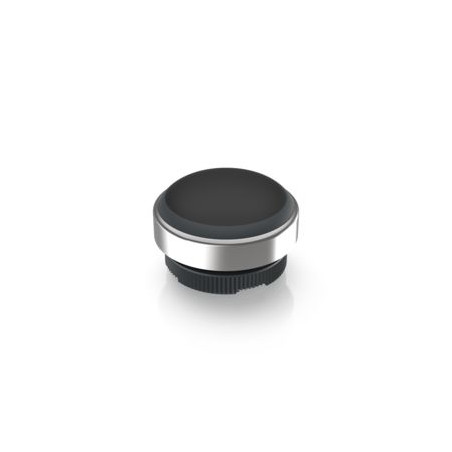

RAFIX 22 FSR - Tasten

Each RAFIX 22 FSR button is equipped with a protective cover. The button is resistant to external impacts and provides a degree of protection compliant with IP65 and/or IP69K standards according to IEC 60529. This means protection against water ingress when high-pressure washers are used.

Illumination capability Lens color Catalog number
YES Transparent red 1.30.280.001/2301
YES Transparent yellow 1.30.280.001/2401
YES Transparent green 1.30.280.001/2501
YES Transparent blue 1.30.280.001/2601
YES Transparent white 1.30.280.001/2201
NO Black 1.30.280.001/0101

Custom prints and ring colors available on request.

RAFIX-schema

General Information
Lens shape Translucent
Lens color Various
Front ring color Black
Collar shape Round
Dimensions
Collar diameter 31.3mm
Height 12.2mm
Button hole 22.3mm
Mechanical Properties
Mounting Threaded
Button type Momentary
Tightening torque 1.2Nm
Button travel 4mm
Maximum force 100 N
Others
Operating temperature range -40 – 80°C
IP rating (front side) IP65
ROHS Yes
REACH Yes
