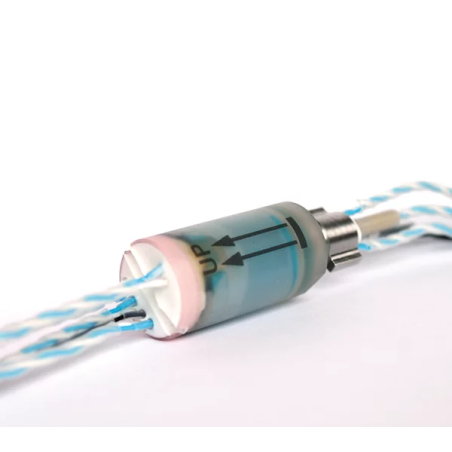

SLIP RING SC020-12-K40

SLIP RING SC020-12-K40

FACTS

  • Qualified for airborne applications
  • Customized interface
  • Special hermetic sealing
  • Cable Segregation
  • High g-load capable

APPLICATION EXAMPLES

  • Cabin Attendant Seat

DATA

Number of rings: 9
Current per ring: ≤ 1,5 A per signal ring
Voltage: ≤ 48 VDC / 34 VAC
Dielectric strength: 500 VAC
Insulation resistance: > 5 GMΩ at 500 VDC
Rotation speed: max. 50 rpm
Protection class: Qualified according to DIN EN 2591
Operating temperature: -55 °C ... +85 °C
Electrical connection: customized (flying leads, cable or connector)
Plastic material: Fibre-reinforced polycarbonate
Length: 22 mm
