Ölkühler TCO22-55
  • Ölkühler TCO22-55

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: TEXA industries

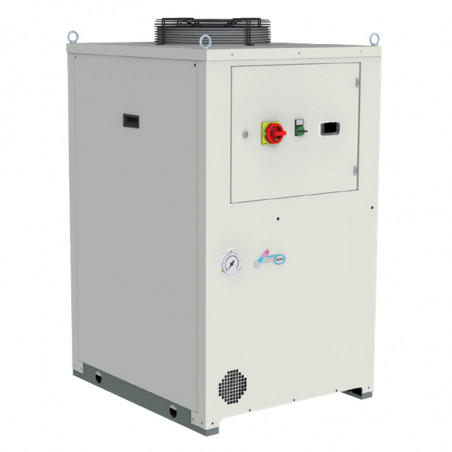

Ölkühler TCO22-55

Coolers, chillers for cooling oil TCO22-55



Cooling power range 2200 - 5300 W
Casing Steel, covered with polyester, colour RAL 7035, casing is removable.
Compressor Hermetically closed compressor with thermal protection.
Cooling circuit Stub pipe for cooling liquid refill, filter, high pressure switch, cooling liquid R134a.
Evaporator Plate heat exchanger with icing protection.
Condenser High efficient, spiral exchanger with ribs, protected with steel net.
Axial fan Protected thermally and with metal net.
Hydraulic circuit Consists of high pressure oil pump 20 bar, pressure control valve 5 bar. Manometer 0-25 bar. Oil container is mounted on the client request.
Temperature control Done by the microprocessor controller TX100, which allows for water temperature control as well as setting of the alarms, lights and turning device on/off.



Dimensions


Technical data

Type TCO 22 TCO 36 TCO 44 TCO 55
Nominal cooling power [W] 2200 3300 4400 5300
Ambient temperature range [°C] +15 ÷ +45
Oil temperature range [°C] +25 ÷ +40
Cooling liquid R134a
Power supply [V/Hz] 400V 3ph / 50
Pump
Oil flow [l/min] 10,0 10,0 20,0 20,0
Oil pressure [bar] 20,0 20, 0 20, 0 20,0
Water terminal [mm] 3/4"
Weight [kg] 132 134 136 138
