Hersteller: TOSHIBA TEC Poland

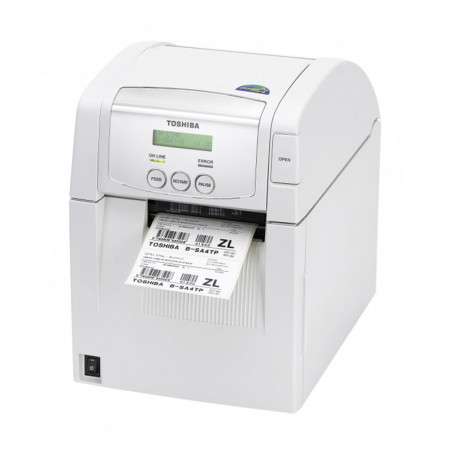

Halbindustrieller Drucker B-SA4TP

Semi-industrial printer B-SA4TP

Technical data
Printing technology
Thermal
Type of printhead
Flat
Printing width
13 - 108 mm
Printing length
10 - 609,6 mm
Label backing width
112 mm
Resolution
203 dpi
Printing speed
Up to 127 mm/s
Memory
2 MB DRAM, 1 MB Flash
Supported barcodes
Code 39, Code 39C, Code 93, Code 128 UCC, Code 128, Code 11,
Codebar, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN i UPC 2(5)
MSI, ITF, Plessey, Postnet, RSS
Supported 2D codes
Data Matrix, PDF 417, Maxicode, QR Code, Micro PDF 417
Interfaces
Serial port, LPT, USB 1.1
Dimensions
200 (W) x 169 (H) x 230 (D) mm
Additional options
Blade - partial clipping, blade - full clipping, memory,
label peel-off module, external LAN port
Weight
2 kg (not including labels and power supply)
Consumables
Paper roll - internal diameter
25,4 - 76,2 mm
Paper roll - external diameter
127 mm / 214 mm with external label feeder
(inward- and outward-facing rolls available)
Thermal paper thickness
0,06 - 0,19 mm


B-SA4TP
Thermal and thermal transfer semi-industrial printer
Model Description Printing resolution (dpi) Max. printing speed (mm/s) Max. printing width (mm) LPT USB LAN
B-SA4TP-GS12-QM-R
Printhead 203 dpi
 203 104 105,7 V V V
B-SA4TP-TS12-QM-R
Printhead 300 dpi
 305 152,4 105,7 V V V
B-SA4TP - options
B-SA204P-QM-R
Blade
B-SA904P-H-QM-R
Label peel-off module
B-SA704-RS-QM-R
Serial port
B-SA704-WLAN-QM-R
WLAN card
B-SA704-IO-QM-R
Binary logic module
B-SA704-TPH3-QM-R
Printhead 300 dpi
B-SA704-RFID-U1-EU-R
UHF RFID module (868 MHz) - in progress
B-SA704-RFID-H1-QM-R
HF RFID module (13,56 MHz) - in progress
B-SA704-RTC-QM-R
Real-time clock
B-SA4TP - spare parts
7FM00973000
Printhead 203dpi
7FM00973100
Printhead 305dpi
