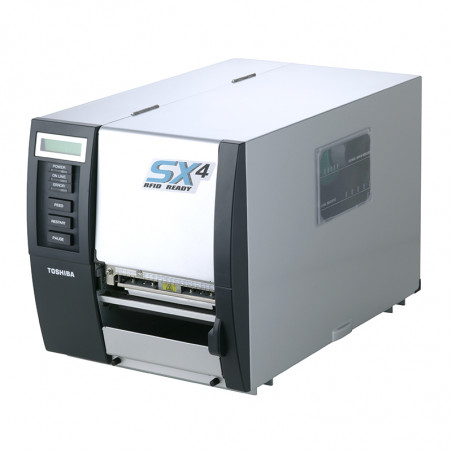

![Industriedrucker B-SX4 Industriedrucker B-SX4](https://www.dacpol.eu/7551-large_default/industriedrucker-b-sx4.jpg)
![Industriedrucker B-SX4 Industriedrucker B-SX4](https://www.dacpol.eu/7551-large_default/industriedrucker-b-sx4.jpg)
Sie müssen eingeloggt sein
Fotos dienen nur zu Informationszwecken.
please use latin characters
Technical data
|
|
---|---|
Printing technology
|
Thermal and thermal transfer printing
|
Type of printhead
|
Edge
|
Printing width
|
27 - 104 mm
|
Printing length
|
6 - 1498 mm
|
Label backing width
|
112 mm
|
Resolution
|
203 dpi
|
Printing speed
|
Up to 254 mm/s
|
Memory
|
8 MB SDRAM, 4 MB Flash
|
Supported barcodes
|
UPC/EAN/JAN, Code 39, Code 93, Code 128, EAN 128, NW7, MSI,
Industrial 2 of 5, ITF, Postnet, RM4SCC, KIX-Code, RSS14 |
Supported 2D codes
|
Data Matrix, PDF 417, Maxicode, QR Code, Micro PDF 417, CP Code
|
Interfaces
|
Serial port, two-way LPT port
|
Dimensions
|
291 (W) x 308 (H) x 460 (D) mm
|
Additional options
|
Standard blade, rotary blade, label peel-off module and winder,
PCMCIA module, LAN 10/100 card, USB 1.1, RFID module, tape saver module, binary logic port |
Weight
|
18 kg (not including tape and labels)
|
Consumables | |
Paper roll - internal diameter
|
76,2 mm
|
Paper roll - external diameter
|
200 mm (inward- and outward-facing rolls available)
|
Label thickness
|
0,13 - 0,29 mm
|
Thermal transfer tape length |
Max. 600 m
|
B-SX4
Thermal and thermal transfer industrial printer |
||||||
---|---|---|---|---|---|---|
Model | Description | Printing resolution (dpi) | Max. printing speed (mm/s) |
Max. printing width (mm) |
RS port | LAN |
B-SX4T-GS20-QM-R
|
Standard version
|
203 | 254 | 104 | V | V |
B-SX4 - options
|
||||||
B-4205-QM-R
|
Standard blade
|
|||||
B-8204-QM-R
|
Rotary blade
|
|||||
B-7704-IO-QM-R
|
Binary logic port
|
|||||
B-9700-PCM-QM-R
|
PCMCIA module
|
|||||
B-9700-LAN-QM-R
|
LAN 10/100 card
|
|||||
B-9700-USB-QM-R
|
USB 1.1 port
|
|||||
B-9700-WLAN-QM-R
|
WiFi card
|
|||||
B-9904-R2-QM-R
|
Tape saver module
|
|||||
B-9904-H-QM-R
|
Label peel-off module
|
|||||
B-LAN-01
|
LAN PCMCIA card (requires PCMCIA module)
|
|||||
B-ATA-32
|
ATA 32MB card (requires PCMCIA module)
|
|||||
B-9405-ST
|
Automatic label packing machine
|
|||||
Cover Stacker B-4205
|
Standard knife shielding for label packing
|
|||||
Cover Stacker B-8204
|
Rotary knife shielding for label packing
|
|||||
RFID-KIT HF
|
HF RFID module with antenna (13,56 MHz)
|
|||||
B-9704-RFID-U1-EU-R
|
UHF RFID module with antenna (868 MHz)
|
|||||
B-SX4 - spare parts
|
||||||
7FM01641000
|
Printhead
|
