Hersteller: TOSHIBA TEC Poland

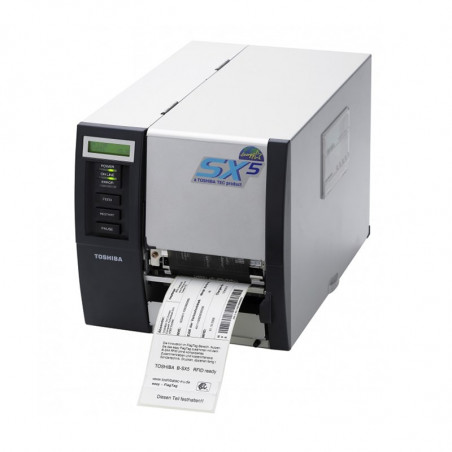

Industriedrucker B-SX5

Industrial printer B-SX5

Technical data
Printing technology
Thermal and thermal transfer printing
Type of printhead
Edge
Printing width
27 - 127,5 mm
Printing length
6 - 1498 mm
Label backing width
140 mm
Resolution
305 dpi
Printing speed
Up to 203 mm/s
Memory
16 MB SD-RAM, 4 MB Flash
Supported barcodes
UPC/EAN/JAN, Code 39, Code 93, Code 128, EAN 128, NW7, MSI,
Industrial 2 of 5, ITF, Postnet, RM4SCC, KIX-Code, RSS14
Supported 2D codes
Data Matrix, PDF 417, Maxicode, Micro PDF 417, QR Code
Interfaces
Serial port, LPT port, binary logic module
Dimensions
291 (W) x 308 (H) x 460 (D) mm
Additional options
Standard blade, rotary blade, PCMCIA module, LAN 10/100 card, USB 1.1, RFID module
Weight
18 kg (not including labels and tapes)
Consumables
Paper roll - internal diameter
76,2 mm
Paper roll - external diameter
200 mm (inward- and outward-facing rolls available)
Label thickness
0,13 - 0,29 mm
Thermal transfer tape length
Max. 600 m


B-SX5
Thermal and thermal transfer industrial printer
ModelDescriptionPrinting resolution (dpi)Max.
pringitng speed (mm/s)		Max.
printing width (mm)		LPTUSBLAN
B-SX5T-TS12-QM-R
Standard version
 305 203 127,5 V V V
B-SX5 - options
B-4205-QM-R
Standard blade
B-8204-QM-R
Rotary knife
B-7704-IO-QM-R
Binary logic port (standard equipment)
B-9700-PCM-QM-R
PCMCIA module
B-9700-LAN-QM-R
LAN 10/100 card
B-9700-USB-QM-R
USB 1.1 port
B-9700-WLAN-QM-R
WiFi card
B-9904-R2-QM-R
Tape saver module (standard equipment)
B-9904-H-QM-R
Label peel-off module (standard equipment)
B-LAN-01
LAN PCMCIA card (requires PCMCIA module)
B-ATA-32
ATA 32MB card (requires PCMCIA module)
B-9405-ST
Automatic label packing machine
Cover Stacker B-4205
Standard blade shielding for label packing
Cover Stacker B-8204
Rotary blade shielding for label packing
RFID-KIT HF
HF RFID module with antenna (13,56 MHz)
B-9704-RFID-U1-EU-R
UHF RFID module with antenna (868 MHz)
B-SX5 - spare parts
7FM01641100
Printhead
