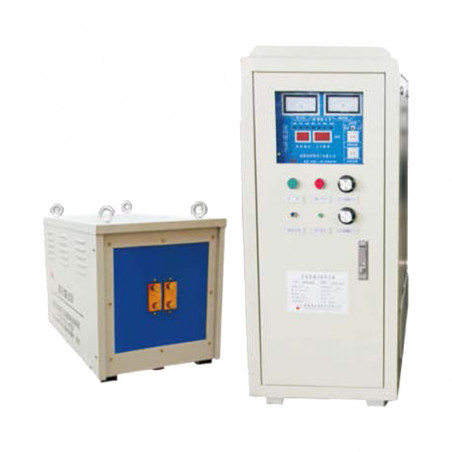

Generatoren der SWS-Serie, Frequenz: 15-30 kHz, Leistung: 25-260 kW
  • Generatoren der SWS-Serie, Frequenz: 15-30 kHz, Leistung: 25-260 kW

Fotos dienen nur zu Informationszwecken.

please use latin characters

Generatoren der SWS-Serie, Frequenz: 15-30 kHz, Leistung: 25-260 kW

Generators SWS series (15-30 kHz)

Applications:

  1. Heat treatment of metals: hardening, tempering, annealing, stress relieving.
  2. Heating before forming: forging, swelling, bending, perforation.
  3. Brazing and soldering: steel, brass, copper, aluminum.
  4. Application and hot pressing of bearings, compressors, shields, etc.
  5. Heating before coating with metals, plastics, paints.
  6. Melting of various types of metals.
  7. Other applications like semiconductor recrystallization, lid sealing, sintering, plasma generation.

Advanced technology and economic benefits:

  1. IGBT transistor technology, high efficiency inverter, saving in energy consumption (15%-30% compared to thyristor technology).
  2. Definitely a more efficient technology than soldering or flame welding.
  3. Easy startup.
  4. Power Factor ≥ 95%.
  5. Comprehensive security features to enhance the reliability and stability of the device.
  6. No requirement for additional investment, low operating cost, easy to operate.
  7. Modular design, convenient for service and repair.
  8. Energy saving and no pollution.
  9. Easy operation and possible connection to PLCs.
  10. Low weight, low volume and easy to install.
  11. Advanced diagnostics and security system.
  12. Design in accordance with ISO system requirements.

 SWS-25A SWS-40A SWS-50A SWS-65A SWS-80A
Input Voltage AC~3×400V±10% 50~60Hz
Input Phase Current 36 A 60 A 76 A 100 A 125 A
Output Power 25 kW 40 kW 50 kW 65 kW 80 kW
Frequency 15~30 kHz
Power Factor ≥95%
Cooling Water Pressure 0.2-0.25 MPa 0.2-0.25 MPa 0.2-0.25 MPa 0.2-0.25 MPa 0.2-0.25 MPa

SWS-100A SWS-120A SWS-160A SWS-200A SWS-260A
Input Voltage AC~3×380V±10% 50~60Hz
Input Phase Current 152 A 200 A 250 A 310 A 400 A
Output Power 100 kW 120 kW 160 kW 200 kW 260 kW
Frequency 15~30 kHz
Power Factor ≥95%
Cooling Water Pressure 0.2-0.25 MPa 0.2-0.25 MPa 0.2-0.25 MPa 0.25-0.3 MPa 0.25-0.3 MPa
