Induktionsheizungsgeneratoren: Leistung 25-250 kW, Frequenz 4-50 kHz
  • Induktionsheizungsgeneratoren: Leistung 25-250 kW, Frequenz 4-50 kHz

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: Himmelwerk

Induktionsheizungsgeneratoren: Leistung 25-250 kW, Frequenz 4-50 kHz

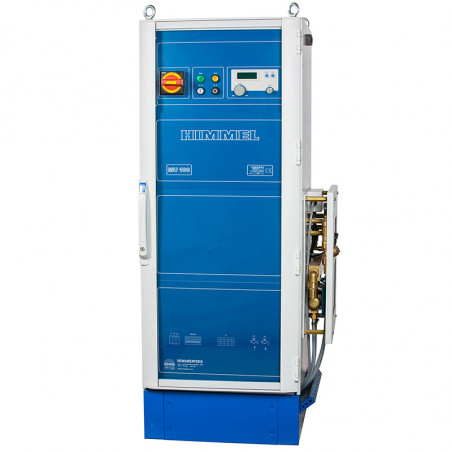

Induction Heating Generators - MU Series

Induction Heating Generators - MU Series are the standard in applications that heat deeper areas of workpieces. They simultaneously provide high performance, reliability and high cost effectiveness. The generators have microprocessor control and can be easily integrated into production processes.

Model
HF-Power [kW]
Frequency [kHz]
Mains Voltage [V]
Mains Power [kVA]
MU-25
25
8-50
3x400
28
MU-40
40
8-50
3x400
44
MU-60
60
8-50
3x400
67
MU-80
80
8-30
3x400
89
MU-100
100
8-30
3x400
111
MU-125
125
8-20
3x400
139
MU-150
150
8-20
3x400
167
MU-175
175
8-20
3x400
194
MU-200
200
8-20
3x400
222
MU-250
250
8-20
3x400
278

For more technical information, please refer to the data sheet under the "Downloads" tab.

Advantages:

  • High efficiency
  • High reliability
  • Reproducibility of all parameters
  • Selective heating
  • Designed for 100% duty cycle
  • Easy integration in production processes
  • Immediate readiness
  • High cost effectiveness
  • No need for demineralized cooling water

Flexibility:

  • Large spectrum of applications
  • Free programming
  • External heating head with compact design
  • Optional second switchable heating head
  • Connection with flexible cables
  • Interface for external control
  • Profibus, Profinet optional
  • Other interfaces on request
  • Optional connection with pyrometer

Applications:

Brazing, soldering, hardening, shrinkage, pre-heating, annealing, smelting, drying, tempering, forging, sintering, sealing.
