Bodenboden in Ex-Zonen markieren

General Information

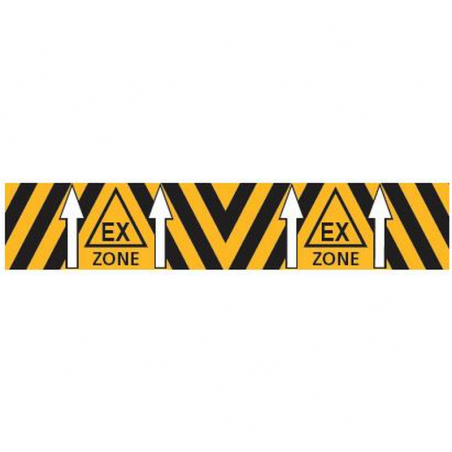

The floor marking with the special imprint for marking explosive areas according to DIN EN 60079- 10-1 (Gas-Ex) and DIN EN 60079-10-2 (Dust-Ex). The floor marking tape made of PVC is for indoor use. Due to its high durability, "Zone Marking" is the ideal solution for marking hazardous areas. The marking tape is easy to clean and can also be driven over by lift trucks.

Explosion protection

• The marking tape cannot become dangerously charged because the layer thickness for explosion groups IIA and IIB is < 2 mm. For explosion group IIC, the usability must be determined and confirmed individually.
• The marking foil should not be used to cover an area of e.g. 50 x 50 cm or 1 m x 1 m completely.

Order Description

Description	Width	Item number	Imprint
Bodenmarkierung - Ex-Zone	50 mm	A415007
Bodenmarkierung - Ex-Zone	75 mm	A415014
Bodenmarkierung - Ex-Zone	100 mm	A415021
Bodenmarkierung - Ex Zone 1	50 mm	A415001
Bodenmarkierung - Ex Zone 1	75 mm	A415008
Bodenmarkierung - Ex Zone 1	100 mm	A415015
Bodenmarkierung - Ex Zone 2	50 mm	A415002
Bodenmarkierung - Ex Zone 2	75 mm	A415009
Bodenmarkierung - Ex Zone 2	100 mm	A415016
Bodenmarkierung - Ex Zone 1 / 2	50 mm	A415003
Bodenmarkierung - Ex Zone 1 / 2	75 mm	A415010
Bodenmarkierung - Ex Zone 1 / 2	100 mm	A415017
Bodenmarkierung - Ex Zone 21	50 mm	A415004
Bodenmarkierung - Ex Zone 21	75 mm	A415011
Bodenmarkierung - Ex Zone 21	100 mm	A415018
Bodenmarkierung - Ex Zone 22	50 mm	A415005
Bodenmarkierung - Ex Zone 22	75 mm	A415012
Bodenmarkierung - Ex Zone 22	100 mm	A415019
Bodenmarkierung - Ex Zone 21 / 22	50 mm	A415006
Bodenmarkierung - Ex Zone 21 / 22	75 mm	A415013
Bodenmarkierung - Ex Zone 21 / 22	100 mm	A415020

Additional Information
The floor marking tapes shown and defined here comply to the usual standard. Basically the print can be produced individually according to your requirements. Please contact us!
