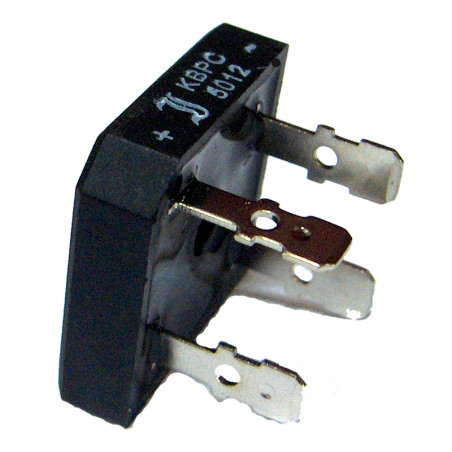

![Brückengleichrichter mit Einpress-Dioden Brückengleichrichter mit Einpress-Dioden](https://www.dacpol.eu/6294-large_default/bruckengleichrichter-mit-einpress-dioden.jpg)
![Brückengleichrichter mit Einpress-Dioden Brückengleichrichter mit Einpress-Dioden](https://www.dacpol.eu/6294-large_default/bruckengleichrichter-mit-einpress-dioden.jpg)
Sie müssen eingeloggt sein
Fotos dienen nur zu Informationszwecken.
please use latin characters
Connection | Type | IR [A] | Diodes [szt.] | Plates [szt.] | Plates dimensions [mm] | "T” type width standard [mm] | "D" type width standard [mm] |
---|---|---|---|---|---|---|---|
![]() |
PTS-200 | 200 | 24 | 6 | 100x100x3 | 220 | 170 |
PTS-240 | 240 | 24 | 6 | 100x200x3 | 220 | 170 | |
PTS-400 | 400 | 42 | 6 | 100x200x3 | 265 | 185 | |
PTS-500 | 500 | 48 | 6 | 100x300x3 | 265 | 180 | |
PTS-700 | 700 | 72 | 6 | 100x300x3 | 265 | 180 |
Caution:
Pulse duty - 60% / 12-Vrrm = 1200V
Casing - PTS 200 ![]() |
Casing - PTS 400 ![]() |
Casing - PTS 240 ![]() |
Casing - PTS 700 ![]() |
