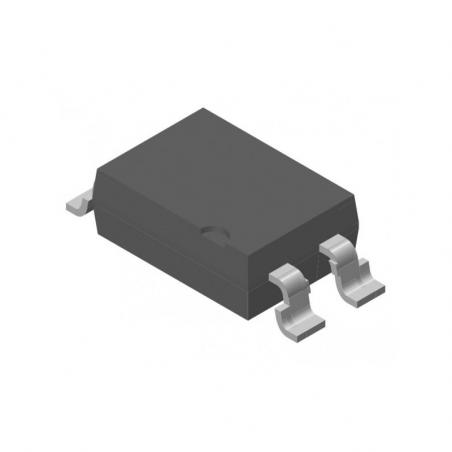

Brückengleichrichter von DIOTEC, 1 und 3 phasig
  • Brückengleichrichter von DIOTEC, 1 und 3 phasig

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: Diotec

Brückengleichrichter von DIOTEC, 1 und 3 phasig

Casing Type MicroDIL SuDerMicroDIL MiniDIL SO-DIL DIL

1

p

h

a

s

e

 Voltage
V RDM
[V]
CurrentIFAV 0.5A 0.5A 0.8A 0.8A 1.0A 2.3A 1.0A 1.0A 1.0A 2.3A 1.0A 1.0A

s

t

a

n

d

a

r

d

 80 MYS40 MS40 S40 S40F B40S B40S2A B40FS CS10S(20V) B40D B40D2A B40FD CS10D(20V)
160 MYS80 MS80 S80 S80F B80S B80S2A B80FS CS20S(40V) B80D B80D2A B80FD CS20D(40V)
250 MYSI 25 MS125 SI 25 S125F B125S B125S2A B125FS CS30S(60V) B125D B125D2A B125FD CS30D(60V
        Fast Rec     Fast Rec Schottky     Fast Rec Schottky
600 MYS250 MS250 S250 S250F B250S B250S2A B250FS CS40S(80V) B250D B250D2A B250FD CS40D (80 V)
800 MYS380 MS380 S380 S380F B380S B380S2A B380FS CS50S(100V) B380D B380D2A B380FD CS50D(100V)
1000   MS500 S500   B500S       B500D


Casing Type 19 x 10 x 3.5 0 9 x 5 32 x 17 x 5.6

1

p

h

a

s

e

 Voltage
V RDM
[V]
CurrentIFAV 2.3A/1.5A 2A 3.7 A / 2.2 A 5 A / 3.3 A 7 A / 4 A

s

t

a

n

d

a

r

d

 80 B40C2300-1500A/B B40R B40O700-2200 B40C5000-3300 B40C7000-4000
160 B80C2300-1500A/B B80R B80O700-2200 B80C5000-3300 B80C7000-4000
250 B125C2300-1500A/B B125R BI 250700-2200 B125C5000-3300 B125C7000-4000

600 B250C2300-1500A/B B250R B250O700-2200 B250C5000-3300 B250C7000-4000
800 B380C2300-1500A/B B380R B380O700-2200 B380C5000-3300 B380C7000-4000
1000 B500C2300-1500A/B B500R B500O700-2200 B500C5000-3300 B500C7000-4000


Casing Type 19x10x3.5 30x20x4.8 20.8x18x3.3 23.5x19.3x5.7

1

p

h

a

s

e

 Voltage
V RDM
[V]
CurrentIFAV 4A 10A 15A 20A 25A 4A 6A 8A 12a 4A 6A 8A 12A

s

t

a

n

d

a

r

d

 50 GBS4A GBI10A GBI15A GBI20A GBI25A GBU4A GBU6A GBU8A GBU12A KBU4A KBU6A KBU8A KBU12A
100 GBS4B GBI10B GBI15B GBI20B GBI25B GBU4B GBU6B GBU8B GBU12B KBU4B KBU6B KBU8B KBU12B
200 GBS4D GBI10D GBI15D GBI20D GBI25D GBU4D GBU6D GBU8D GBU12D KBU4D KBU6D KBU8D KBU12D
400 GBS4G GBI10G GBI15G GBI20G GBI25G GBU4G GBU6G GBU8G GBU12G KBU4G KBU6G KBU8G KBU12G
600 GBS4J GBI10J GBI15J GBI20J GBI25J GBU4J GBU6J GBU8J GBU12J KBU4J KBU6J KBU8J KBU12J
800 GBS4K GBI10K GBI15K GBI20K GBI25K GBU4K GBU6K GBU8K GBU12K KBU4K KBU6K KBU8K KBU12K
1000 GBS4M GBI10M GBI15M GBI20M GBI25M GBU4M GBU6M GBU8M GBU12M KBU4M KBU6M KBU8M KBU12M

Casing Type 15.2x15.2x6.3 19x19x6.8 15.1x15.1x6.3

1

p

h

a

s

e

 Voltage
V RDM
[V]
Current IFAV 6A 5A 10A 10A

S

t

a

n

d

a

r

d

 50 KBPC600 KBPC800 PB1000 PB1000S
100 KBPC601 KBPC801 PB1001 PB1001S
200 KBPC602 KBPC802 PB1002 PB1002S
400 KBPC604 KBPC804 PB1004 PB1004S
600 KBPC606 KBPC806 PB1006 PB1006S
800 KBPC608 KBPC808 PB1008 PB1008S
1000 KBPC610 KBPC810 PB1010 PB1010S

Casing Type 28.6 x 28.6 x 7.3 28.6x28.6x7.3

1

p

h

a

s

e

 Voltage
V RDM
[V]
Current 10A/15A/25A 35 A 50A 25 A 35 A

s

t

a

n

d

a

r

d

 50 KBPC10/15/2500FP(WP) KBPOSOOFP(WP) KBPC5000FP KBPC2500I KBPO500I
100 KBPC10/15/2501FP(WP) KBPCSSOIFP(WP) KBPC5001FP KBPC2501I KBPO501I
200 KBPC10/15/2502FP(WP) KBPO502FP(WP) KBPC5002FP KBPC2502I KBPO502I
400 KBPC10/15/2504FP(WP) KBPO504FP(WP) KBPC5004FP KBPC2504I KBPO504I
600 KBPC10/15/2506FP(WP) KBPCSSOSFP(WP) KBPC5006FP KBPC2506I KBPO506I
800 KBPC10/15/2508FP(WP) KBPO508FP(WP) KBPC5008FP KBPC2508I KBPO508I
1000 KBPC10/15/2510FP(WP) KBPCSSIOFP(WP) KBPC5010FP KBPC2510I KBPO510I
1200 KBPC10/15/2512FP(WP) KBP0512FP(WP) KBPC5012FP
1400 KBPC10/15/2514FP(WP) KBP0514FP(WP) only/nur
1600 KBPC10/15/2516FP(WP)   Type"FP"

Casing Type 35 x 25 x 4 28.5 x 28.5 x 10

1

p

h

a

s

e

 Voltage
V RDM
[V]
Current 25A 15/25A 35A

s

t

a

n

d

a

r

d

 50 DBI25-005A DB15/25-005 DB35-005
100   DB15/25-01 DB35-01
200   DB15/25-02 DB35-02
400 DBI25-04A DB15/25-04 DB35-04
600   DB15/25-06 DB35-06
800 DBI25-08A DB15/25-08 DB35-08
1000   DB15/25-10 DB35-10
1200 DBI25-12A DB15/25-12 DB35-12
1400   DB15/25-14 DB35-14
1600 DBI25-16A DB15/25-16 DB35-16
