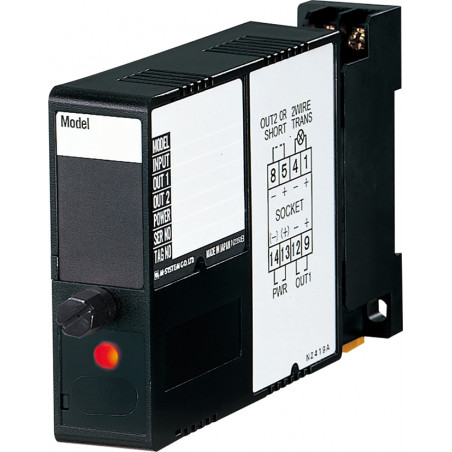

M2DYS - Stromschleife Stromversorgung

  • M2DYS

M2DYS is a current loop power supply.


Features

  • Powers 4… 20mA DC current loop
  • Mounting socket for each model - enables easy assembly / disassembly and quick conversion of converters without interfering with the wiring
  • Electrically isolates the output signal from the power input
  • Provides galvanic isolation
  • Short-circuit protection
  • Output power - 24 V DC
  • AC / DC power

Input: 4… 20mA
Output: current or voltage with different ranges


< / tr> < th style = "padding-left: 20px"> Operating Temperature
Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric strength For DC power supply: 2000V AC
When powered by AC: 1500V AC
Ranges selection None
Double Exit None
Power AC / DC
- 5 to + 55 ° C
Mounting DIN rail
Dimensions 23x76x124mm
