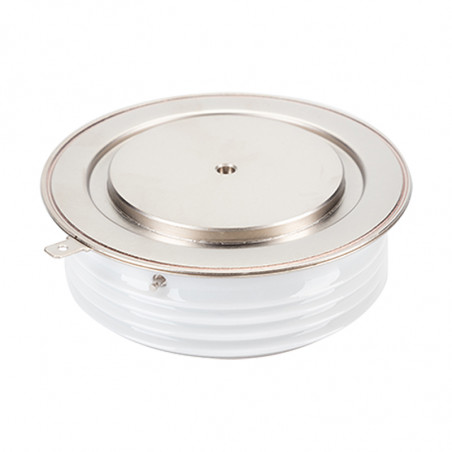

Thyristoren von DYNEX

FEATURES
- Double Side Cooling
- High Surge Capability

APPLICATIONS
- High Power Drives
- High Voltage Power Supplies
- Static Switches

Standard Thyristors

Type VDRMM
[V]		 VRRM
[V]		 IT (AV)
[A]		 ITSM
[kA]		 dV/dt
[V/µs]		 Non rep. dI/dt
[A/µs]		 Rth(j-c)
[°C/W]		 Dimensions
[mm]		 Casing
[Drawing No.]

DCR470T14

 1400 1400 470 6.3 1000 1000 0.08 42/19/13.5 T/DYN

DCR780E14

 1400 1400 780 9.1 1000 1000 0.041 42/25/14.5 E/DYN

DCR950D14

 1400 1400 950 12.8 1000 1000 0.035 47/29/14.5 D/DYN

DCR1010G14

 1400 1400 1010 15 1000 1000 0.035 58/35/26.5 G/DYN

DCR1910F14

 1400 1400 1910 26 1000 1000 0.02 75/47/26.5 F/DYN

DCR2150X14

 1400 1400 2150 29 1000 1000 0.018 85/53/26.5 X/DYN

DCR2980C14

 1400 1400 2980 47 1000 1000 0.0125 100/63/26.5 C/DYN

DCR3710V14

 1400 1400 3710 60 1000 1000 0.01 110/73/26.5 V/DYN

DCR370T18

 1800 1800 370 5 1000 1000 0.08 42/19/13.5 T/DYN

DCR720E18

 1800 1800 720 8.3 1000 1000 0.041 42/25/14.5 E/DYN

DCR860D18

 1800 1800 860 11.5 1000 1000 0.035 47/29/14.5 D/DYN

DCR960G18

 1800 1800 960 14 1000 1000 0.035 58/35/26.5 G/DYN

DCR1710F18

 1800 1800 1710 25 1000 1000 0.02 75/47/26.5 F/DYN

DCR1800F18

 1800 1800 1800 32 1000 1000 0.02 75/47/26.5 F/DYN

DCR1970X18

 1800 1800 1970 28 1000 1000 0.018 85/53/26.5 X/DYN

DCR2830C18

 1800 1800 2830 45 1000 1000 0.0125 100/63/26.5 C/DYN

DCR3400V18

 1800 1800 3400 60 1000 1000 0.01 110/73/26.5 V/DYN

DCR4440W22

 2200 2200 4440 64.5 1000 1000 0.007 120/84/26.5 W/DYN

DCR5900A22

 2200 2200 5900 80 1000 1000 0.0057 150/100/35 A/DYN

DCR6430M22

 2200 2200 6430 80 1000 1000 0.005 150/100/26.5 M/DYN

DCR590E24

 2400 2400 590 7.8 1000 1000 0.041 42/25/14.5 E/DYN

DCR750D24

 2400 2400 750 10 1000 1000 0.035 47/29/14.5 D/DYN

DCR1700X24

 2400 2400 1700 23 1000 1000 0.018 85/53/26.5 X/DYN

DCR2360C24

 2400 2400 2360 35 1000 1000 0.0125 100/63/26.5 C/DYN

DCR3060V24

 2400 2400 3060 45 1000 1000 0.01 110/73/26.5 V/DYN

DCR850G26

 2600 2600 850 11 1000 1000 0.035 58/35/26.5 G/DYN

DCR1560F26

 2600 2600 1560 24 1000 1000 0.02 75/47/26.5 F/DYN

DCR7610H28

 2800 2800 7610 105 1000 1000 0.004 172/110/35 H/DYN

DCR2060C28

 2800 2800 2060 30 1000 1000 0.0125 100/63/26.5 C/DYN

DCR2760V28

 2800 2800 2760 43 1000 1000 0.01 110/73/26.5 V/DYN

DCR4590B28

 2800 2800 4590 65 2000 500 0.007 120/84.6/34.87 B/DYN

DCR4910W28

 2800 2800 4910 65 2000 500 0.00631 120/84/26.5 W/DYN

DCR5320A28

 2800 2800 5320 75 1000 1000 0.0057 150/100/35 A/DYN

DCR5900A28

 2800 2800 5900 79 2000 250 0.00603 150/100/35 A/DYN

DCR5790M28

 2800 2800 5790 75 1000 1000 0.005 150/100/26.5 M/DYN

DCR780G30

 3000 3000 780 10.5 1000 1000 0.035 58/35/26.5 G/DYN

DCR1460F30

 3000 3000 1460 23 1000 1000 0.02 75/47/26.5 F/DYN

DCR470E34

 3400 3400 470 6.3 1000 1000 0.041 42/25/14.5 E/DYN

DCR610D34

 3400 3400 610 8 1000 1000 0.035 47/29/14.5 D/DYN

DCR650G34

 3400 3400 650 8.4 1000 1000 0.035 58/35/26.5 G/DYN

DCR1120F34

 3400 3400 1120 17 1000 1000 0.02 75/47/26.5 F/DYN

DCR1430X34

 3400 3400 1430 19.2 1000 1000 0.018 85/53/26.5 X/DYN

DCR1970C34

 3400 3400 1970 30 1000 1000 0.0125 100/63/26.5 C/DYN

DCR2440V34

 3400 3400 2440 33 1000 1000 0.01 110/73/26.5 V/DYN

DCR3640W34

 3400 3400 3640 54 1000 1000 0.007 120/84/26.5 W/DYN

DCR4720A34

 3400 3400 4720 69 1000 1000 0.057 150/100/35 A/DYN

DCR5110M34

 3400 3400 5110 69 1000 1000 0.005 150/100/26.5 M/DYN

DCR780G42

 4200 4200 780 10.5 1500 400 0.0268 58.5/34/26.72 G/DYN

DCR1150N42

 4200 4200 1150 16.8 1500 1000 0.0221 73/47/34.89 N/DYN

DCR1260F42

 4200 4200 1255 16.8 1500 1000 0.0184 73/47/26.72 F/DYN

DCR2040L42

 4200 4200 2040 29 1500 400 0.0117 98.9/62.85/34.82 L/DYN

DCR2150C42

 4200 4200 2150 29 1500 400 0.0101 98.9/62.9/26.76 C/DYN

DCR2930Y42

 4200 4200 2930 40.6 1500 400 0.00835 112.5/73/35.35 Y/DYN

DCR3030V42

 4200 4200 3030 40.6 1500 400 0.00746 110/73/27.57 V/DYN

DCR3790B42

 4200 4200 3790 53.5 1500 400 0.007 120/84.6/34.87 B/DYN

DCR4100W42

 4200 4200 3880 53.5 1500 400 0.00631 120/84.6/27.57 W/DYN

DCR4500A42

 4200 4200 4500 60.8 2000 500 0.00603 148/100/35.47 A/DYN

DCR4880M42

 4200 4200 4880 60.8 2000 500 0.00518 148/100/26.12 M/DYN

DCR6140H42

 4200 4200 6138 90.91 2000 500 0.004255 172/115/35.15 H/DYN

DCR6650H42

 4200 4200 6650 98.56 2000 500 0.004255 172/115/35.15 H/DYN

DCR690G52

 5200 5200 690 9.45 1500 300 0.0268 58.5/34/26.84 G/DYN

DCR1020N52

 5200 5200 1018 14.8 1500 800 0.0221 73/47/34.89 N/DYN

DCR1110F52

 5200 5200 1107 14.8 1500 800 0.0184 73/47/26.84 F/DYN

DCR1850L52

 5200 5200 1845 26.25 1500 300 0.0117 98.9/62.85/34.94 L/DYN

DCR1950C52

 5200 5200 1950 26.25 1500 300 0.0101 98.9/62.9/26.84 C/DYN

DCR2630Y52

 5200 5200 2630 36.7 1500 300 0.00835 112.5/73/35.47 Y/DYN

DCR2720V52

 5200 5200 2720 36.7 1500 300 0.00746 110/73/27.69 V/DYN

DCR3480B52

 5200 5200 3480 49 1500 400 0.007 120/84.6/34.99 B/DYN

DCR3640W52

 5200 5200 3550 49 1500 400 0.00631 120/84.6/27.69 W/DYN

DCR3990A52

 5200 5200 3990 53.4 2000 1000 0.00603 148/100/35.61 A/DYN

DCR4330M52

 5200 5200 4325 53.4 2000 1000 0.00518 148/100/26.26 M/DYN

DCR5240H52

 5200 5200 5240 77.8 2000 500 0.004255 170/115/35.27 H/DYN

DCR5890H52

 5200 5200 5890 86.97 2000 500 0.004255 170/115/35.27 H/DYN

DCR490J65

 6500 6500 490 6.6 1500 200 0.0379 57/33.95/35.15 J/DYN

DCR590G65

 6500 6500 595 6.6 1500 200 0.0268 58.5/34/27.1 G/DYN

DCR820N65

 6500 6500 820 12 1500 200 0.0221 73/47/35.15 N/DYN

DCR890F65

 6500 6500 894 12 1500 200 0.0184 73/47/27.1 F/DYN

DCR1570L65

 6500 6500 1568 22 1500 300 0.0117 98.9/62.85/35.2 L/DYN

DCR1650C65

 6500 6500 1650 22 1500 300 0.0101 98.9/62.9/27.1 C/DYN

DCR2220Y65

 6500 6500 2220 30 1500 300 0.00835 112.5/73/35.73 Y/DYN

DCR2290V65

 6500 6500 2290 30 1500 500 0.0074 110/73/27.95 V/DYN

DCR2880B65

 6500 6500 2845 38.5 1500 300 0.007 120/84.6/35.25 B/DYN

DCR2950W65

 6500 6500 2945 38.5 1500 300 0.00631 120/84.6/27.95 W/DYN

DCR3220A65

 6500 6500 3220 44.2 2000 500 0.00603 148/100/35.85 A/DYN

DCR4420H65

 6500 6500 4420 65.6 2000 500 0.00423 170/115/35 H/DYN

DCR4660H65

 6500 6500 4660 69.2 2000 500 0.00423 170/115/35 H/DYN

DCR390J85

 8500 8500 387 5.25 1500 200 0.0379 57/33.95/35.51 J/DYN

DCR470G85

 8500 8500 467 5.25 1500 200 0.0268 58.5/34/27.46 G/DYN

DCR680N85

 8500 8500 677 9.8 1500 200 0.0221 73/47/35.51 N/DYN

DCR750F85

 8500 8500 733 9.8 1500 200 0.0184 73/47/27.46 F/DYN

DCR1300L85

 8500 8500 1300 17.6 1500 400 0.0117 98.9/62.85/35.56 L/DYN

DCR1840Y85

 8500 8500 1840 25 1500 300 0.00835 112.5/73/36.09 Y/DYN

DCR1910V85

 8500 8500 1910 25 1500 300 0.00746 110/73/28.31 V/DYN

DCR2400B85

 8500 8500 2370 35.2 1500 300 0.007 120/84.6/35.61 B/DYN

DCR2450W85

 8500 8500 2450 35.2 1500 300 0.00631 120/84.6/27.95 W/DYN

DCR2560A85

 8500 8500 2560 32.5 1500 200 0.00603 148/100/36.19 A/DYN

DCR2760M85

 8500 8500 2765 32.5 1500 200 0.00518 148/100/26.0 A/DYN

DCR3640H85

 8500 8500 3640 54 2000 500 0.00425 170/115/35 H/DYN

DCR3980H85

 8500 8500 3980 59.6 2000 500 0.00425 170/115/35 H/DYN

GTO Thyristors

Type VDRM
[V]		 VRRM
[V]		 ITCM
[A]		 dV/dt
[V/µs]		 dI/dt
[A/µs]		 Rth(j-c)
[°C/W]		 Dimensions
[mm]		 Casing
[Drawing No.]

DGT304SE

 1300 16 700 500 500 0.075 41.9/25/15 E/GTO/DYN

DGT305SE

 1800 16 700 500 500 0.075 41.9/25/15 E/GTO/DYN

DG306AE

 2500 16 600 1000 300 0.075 41.9/25/15 E/GTO/DYN

DG406BP

 2500 16 1200 1000 300 0.041 56/38/27 P/GTO/DYN

DG646BH

 2500 16 2500 1000 300 0.018 100/63/26.5 H/GTO/DYN

DG408BP

 4500 16 1000 1000 300 0.041 56/38/27 P/GTO/DYN

DG648BH

 4500 16 2000 1000 300 0.018 100/63/26.5 H/GTO/DYN

DG758BX

 4500 16 3000 1000 300 0.0146 112/66/27 X/GTO/DYN

DG808BC

 4500 16 3000 1000 400 0.014 108/77.2/27 C/GTO/DYN

DG858BW

 4500 16 4000 1000 300 0.011 120/84.6/27.7 W/GTO/DYN

DG858DW

 4500 16 3000 750 300 0.011 120/84.6/27.7 W/GTO/DYN

DGT304RE

 1300 1300 700 500 500 0.075 41.9/25/15 E/GTO/DYN

DGT305RE

 1800 1800 700 500 500 0.075 41.9/25/15 E/GTO/DYN

Pulse Power Thyristors
Type VDRM
[V]		 VRRM
[V]		 IT (AV)sub> TC= 80°C
[A]		 ITSM
[kA]		 dV/dt
[V/us]		 dI/dt
[A/us]		 to Ipk
[kA]		 Rth(j-c)
[°C/W]		 Dimensions
[mm]		 Casing
[Drawing No.]

ACR300SG33

 3300 20 493 6.5 3000 2000 0.125 0.042 58.5/34/27 G/IMP/DYN

PT40QPx45

 4500 16 760 13 200 5000 20 0.033 56/38/37 P/IMP/DYN

PT60QHx45

 4500 16 1000 22.5 175 10000 40 0.013 100/63/26.5 H/IMP/DYN

PT85QWx45

 4500 16 1670 37 200 22000 90 0.01 120/84.6/27.7 W/IMP/DYN
Bypass Thyristors
Type VDRM
[V]		 VRRM
[V]		 IT (AV)sub> TC= 80°C
[A]		 ITSM
[kA]		 dV/dt
[V/us]		 dI/dt
[A/us]		 to Ipk
[kA]		 Rth(j-c)
[°C/W]		 Dimensions
[mm]		 Casing
[Drawing No.]

ACR2900VR45

 1000 4500 - 39 10000 - - 0.00746 110/73/28.31 V/BYP/DYN

ACR3200VR33

 1000 3300 - 43 10000 - - 0.00746 110/73/28.31 V/BYP/DYN
Thyristors Casing

Drawing A/DYN

Drawing B/DYN

Drawing C/DYN

Drawing D/DYN

Drawing E/DYN

Drawing F/DYN

Drawing G/DYN

Drawing H/DYN

Drawing J/DYN

Drawing L/DYN

Drawing M/DYN

Drawing N/DYN

Drawing T/DYN

Drawing V/DYN

Drawing W/DYN

Drawing X/DYN

Drawing Y/DYN

Drawing C/GTO/DYN

Drawing E/GTO/DYN

Drawing H/GTO/DYN

Drawing P/GTO/DYN

Drawing W/GTO/DYN

Drawing X/GTO/DYN

Drawing G/IPM/DYN

Drawing H/IPM/DYN

Drawing P/IPM/DYN

Drawing W/IPM/DYN

Drawing V/BYP/DYN
Weniger
Weiterlesen

Senden Sie eine Anfrage

Interessieren Sie sich für dieses Produkt? Benötigen Sie zusätzliche Informationen oder individuelle Preise?

Kontaktiere uns
FRAGEN SIE NACH DEM PRODUKT close
Vielen Dank für die Zusendung Ihrer Nachricht. Wir werden so schnell wie möglich antworten.
FRAGEN SIE NACH DEM PRODUKT close
Durchsuche
Senden Sie eine Anfrage

Zur Wunschliste hinzufügen

Sie müssen eingeloggt sein

FEATURES
- Double Side Cooling
- High Surge Capability

APPLICATIONS
- High Power Drives
- High Voltage Power Supplies
- Static Switches

Standard Thyristors

Type VDRMM
[V]		 VRRM
[V]		 IT (AV)
[A]		 ITSM
[kA]		 dV/dt
[V/µs]		 Non rep. dI/dt
[A/µs]		 Rth(j-c)
[°C/W]		 Dimensions
[mm]		 Casing
[Drawing No.]

DCR470T14

 1400 1400 470 6.3 1000 1000 0.08 42/19/13.5 T/DYN

DCR780E14

 1400 1400 780 9.1 1000 1000 0.041 42/25/14.5 E/DYN

DCR950D14

 1400 1400 950 12.8 1000 1000 0.035 47/29/14.5 D/DYN

DCR1010G14

 1400 1400 1010 15 1000 1000 0.035 58/35/26.5 G/DYN

DCR1910F14

 1400 1400 1910 26 1000 1000 0.02 75/47/26.5 F/DYN

DCR2150X14

 1400 1400 2150 29 1000 1000 0.018 85/53/26.5 X/DYN

DCR2980C14

 1400 1400 2980 47 1000 1000 0.0125 100/63/26.5 C/DYN

DCR3710V14

 1400 1400 3710 60 1000 1000 0.01 110/73/26.5 V/DYN

DCR370T18

 1800 1800 370 5 1000 1000 0.08 42/19/13.5 T/DYN

DCR720E18

 1800 1800 720 8.3 1000 1000 0.041 42/25/14.5 E/DYN

DCR860D18

 1800 1800 860 11.5 1000 1000 0.035 47/29/14.5 D/DYN

DCR960G18

 1800 1800 960 14 1000 1000 0.035 58/35/26.5 G/DYN

DCR1710F18

 1800 1800 1710 25 1000 1000 0.02 75/47/26.5 F/DYN

DCR1800F18

 1800 1800 1800 32 1000 1000 0.02 75/47/26.5 F/DYN

DCR1970X18

 1800 1800 1970 28 1000 1000 0.018 85/53/26.5 X/DYN

DCR2830C18

 1800 1800 2830 45 1000 1000 0.0125 100/63/26.5 C/DYN

DCR3400V18

 1800 1800 3400 60 1000 1000 0.01 110/73/26.5 V/DYN

DCR4440W22

 2200 2200 4440 64.5 1000 1000 0.007 120/84/26.5 W/DYN

DCR5900A22

 2200 2200 5900 80 1000 1000 0.0057 150/100/35 A/DYN

DCR6430M22

 2200 2200 6430 80 1000 1000 0.005 150/100/26.5 M/DYN

DCR590E24

 2400 2400 590 7.8 1000 1000 0.041 42/25/14.5 E/DYN

DCR750D24

 2400 2400 750 10 1000 1000 0.035 47/29/14.5 D/DYN

DCR1700X24

 2400 2400 1700 23 1000 1000 0.018 85/53/26.5 X/DYN

DCR2360C24

 2400 2400 2360 35 1000 1000 0.0125 100/63/26.5 C/DYN

DCR3060V24

 2400 2400 3060 45 1000 1000 0.01 110/73/26.5 V/DYN

DCR850G26

 2600 2600 850 11 1000 1000 0.035 58/35/26.5 G/DYN

DCR1560F26

 2600 2600 1560 24 1000 1000 0.02 75/47/26.5 F/DYN

DCR7610H28

 2800 2800 7610 105 1000 1000 0.004 172/110/35 H/DYN

DCR2060C28

 2800 2800 2060 30 1000 1000 0.0125 100/63/26.5 C/DYN

DCR2760V28

 2800 2800 2760 43 1000 1000 0.01 110/73/26.5 V/DYN

DCR4590B28

 2800 2800 4590 65 2000 500 0.007 120/84.6/34.87 B/DYN

DCR4910W28

 2800 2800 4910 65 2000 500 0.00631 120/84/26.5 W/DYN

DCR5320A28

 2800 2800 5320 75 1000 1000 0.0057 150/100/35 A/DYN

DCR5900A28

 2800 2800 5900 79 2000 250 0.00603 150/100/35 A/DYN

DCR5790M28

 2800 2800 5790 75 1000 1000 0.005 150/100/26.5 M/DYN

DCR780G30

 3000 3000 780 10.5 1000 1000 0.035 58/35/26.5 G/DYN

DCR1460F30

 3000 3000 1460 23 1000 1000 0.02 75/47/26.5 F/DYN

DCR470E34

 3400 3400 470 6.3 1000 1000 0.041 42/25/14.5 E/DYN

DCR610D34

 3400 3400 610 8 1000 1000 0.035 47/29/14.5 D/DYN

DCR650G34

 3400 3400 650 8.4 1000 1000 0.035 58/35/26.5 G/DYN

DCR1120F34

 3400 3400 1120 17 1000 1000 0.02 75/47/26.5 F/DYN

DCR1430X34

 3400 3400 1430 19.2 1000 1000 0.018 85/53/26.5 X/DYN

DCR1970C34

 3400 3400 1970 30 1000 1000 0.0125 100/63/26.5 C/DYN

DCR2440V34

 3400 3400 2440 33 1000 1000 0.01 110/73/26.5 V/DYN

DCR3640W34

 3400 3400 3640 54 1000 1000 0.007 120/84/26.5 W/DYN

DCR4720A34

 3400 3400 4720 69 1000 1000 0.057 150/100/35 A/DYN

DCR5110M34

 3400 3400 5110 69 1000 1000 0.005 150/100/26.5 M/DYN

DCR780G42

 4200 4200 780 10.5 1500 400 0.0268 58.5/34/26.72 G/DYN

DCR1150N42

 4200 4200 1150 16.8 1500 1000 0.0221 73/47/34.89 N/DYN

DCR1260F42

 4200 4200 1255 16.8 1500 1000 0.0184 73/47/26.72 F/DYN

DCR2040L42

 4200 4200 2040 29 1500 400 0.0117 98.9/62.85/34.82 L/DYN

DCR2150C42

 4200 4200 2150 29 1500 400 0.0101 98.9/62.9/26.76 C/DYN

DCR2930Y42

 4200 4200 2930 40.6 1500 400 0.00835 112.5/73/35.35 Y/DYN

DCR3030V42

 4200 4200 3030 40.6 1500 400 0.00746 110/73/27.57 V/DYN

DCR3790B42

 4200 4200 3790 53.5 1500 400 0.007 120/84.6/34.87 B/DYN

DCR4100W42

 4200 4200 3880 53.5 1500 400 0.00631 120/84.6/27.57 W/DYN

DCR4500A42

 4200 4200 4500 60.8 2000 500 0.00603 148/100/35.47 A/DYN

DCR4880M42

 4200 4200 4880 60.8 2000 500 0.00518 148/100/26.12 M/DYN

DCR6140H42

 4200 4200 6138 90.91 2000 500 0.004255 172/115/35.15 H/DYN

DCR6650H42

 4200 4200 6650 98.56 2000 500 0.004255 172/115/35.15 H/DYN

DCR690G52

 5200 5200 690 9.45 1500 300 0.0268 58.5/34/26.84 G/DYN

DCR1020N52

 5200 5200 1018 14.8 1500 800 0.0221 73/47/34.89 N/DYN

DCR1110F52

 5200 5200 1107 14.8 1500 800 0.0184 73/47/26.84 F/DYN

DCR1850L52

 5200 5200 1845 26.25 1500 300 0.0117 98.9/62.85/34.94 L/DYN

DCR1950C52

 5200 5200 1950 26.25 1500 300 0.0101 98.9/62.9/26.84 C/DYN

DCR2630Y52

 5200 5200 2630 36.7 1500 300 0.00835 112.5/73/35.47 Y/DYN

DCR2720V52

 5200 5200 2720 36.7 1500 300 0.00746 110/73/27.69 V/DYN

DCR3480B52

 5200 5200 3480 49 1500 400 0.007 120/84.6/34.99 B/DYN

DCR3640W52

 5200 5200 3550 49 1500 400 0.00631 120/84.6/27.69 W/DYN

DCR3990A52

 5200 5200 3990 53.4 2000 1000 0.00603 148/100/35.61 A/DYN

DCR4330M52

 5200 5200 4325 53.4 2000 1000 0.00518 148/100/26.26 M/DYN

DCR5240H52

 5200 5200 5240 77.8 2000 500 0.004255 170/115/35.27 H/DYN

DCR5890H52

 5200 5200 5890 86.97 2000 500 0.004255 170/115/35.27 H/DYN

DCR490J65

 6500 6500 490 6.6 1500 200 0.0379 57/33.95/35.15 J/DYN

DCR590G65

 6500 6500 595 6.6 1500 200 0.0268 58.5/34/27.1 G/DYN

DCR820N65

 6500 6500 820 12 1500 200 0.0221 73/47/35.15 N/DYN

DCR890F65

 6500 6500 894 12 1500 200 0.0184 73/47/27.1 F/DYN

DCR1570L65

 6500 6500 1568 22 1500 300 0.0117 98.9/62.85/35.2 L/DYN

DCR1650C65

 6500 6500 1650 22 1500 300 0.0101 98.9/62.9/27.1 C/DYN

DCR2220Y65

 6500 6500 2220 30 1500 300 0.00835 112.5/73/35.73 Y/DYN

DCR2290V65

 6500 6500 2290 30 1500 500 0.0074 110/73/27.95 V/DYN

DCR2880B65

 6500 6500 2845 38.5 1500 300 0.007 120/84.6/35.25 B/DYN

DCR2950W65

 6500 6500 2945 38.5 1500 300 0.00631 120/84.6/27.95 W/DYN

DCR3220A65

 6500 6500 3220 44.2 2000 500 0.00603 148/100/35.85 A/DYN

DCR4420H65

 6500 6500 4420 65.6 2000 500 0.00423 170/115/35 H/DYN

DCR4660H65

 6500 6500 4660 69.2 2000 500 0.00423 170/115/35 H/DYN

DCR390J85

 8500 8500 387 5.25 1500 200 0.0379 57/33.95/35.51 J/DYN

DCR470G85

 8500 8500 467 5.25 1500 200 0.0268 58.5/34/27.46 G/DYN

DCR680N85

 8500 8500 677 9.8 1500 200 0.0221 73/47/35.51 N/DYN

DCR750F85

 8500 8500 733 9.8 1500 200 0.0184 73/47/27.46 F/DYN

DCR1300L85

 8500 8500 1300 17.6 1500 400 0.0117 98.9/62.85/35.56 L/DYN

DCR1840Y85

 8500 8500 1840 25 1500 300 0.00835 112.5/73/36.09 Y/DYN

DCR1910V85

 8500 8500 1910 25 1500 300 0.00746 110/73/28.31 V/DYN

DCR2400B85

 8500 8500 2370 35.2 1500 300 0.007 120/84.6/35.61 B/DYN

DCR2450W85

 8500 8500 2450 35.2 1500 300 0.00631 120/84.6/27.95 W/DYN

DCR2560A85

 8500 8500 2560 32.5 1500 200 0.00603 148/100/36.19 A/DYN

DCR2760M85

 8500 8500 2765 32.5 1500 200 0.00518 148/100/26.0 A/DYN

DCR3640H85

 8500 8500 3640 54 2000 500 0.00425 170/115/35 H/DYN

DCR3980H85

 8500 8500 3980 59.6 2000 500 0.00425 170/115/35 H/DYN

GTO Thyristors

Type VDRM
[V]		 VRRM
[V]		 ITCM
[A]		 dV/dt
[V/µs]		 dI/dt
[A/µs]		 Rth(j-c)
[°C/W]		 Dimensions
[mm]		 Casing
[Drawing No.]

DGT304SE

 1300 16 700 500 500 0.075 41.9/25/15 E/GTO/DYN

DGT305SE

 1800 16 700 500 500 0.075 41.9/25/15 E/GTO/DYN

DG306AE

 2500 16 600 1000 300 0.075 41.9/25/15 E/GTO/DYN

DG406BP

 2500 16 1200 1000 300 0.041 56/38/27 P/GTO/DYN

DG646BH

 2500 16 2500 1000 300 0.018 100/63/26.5 H/GTO/DYN

DG408BP

 4500 16 1000 1000 300 0.041 56/38/27 P/GTO/DYN

DG648BH

 4500 16 2000 1000 300 0.018 100/63/26.5 H/GTO/DYN

DG758BX

 4500 16 3000 1000 300 0.0146 112/66/27 X/GTO/DYN

DG808BC

 4500 16 3000 1000 400 0.014 108/77.2/27 C/GTO/DYN

DG858BW

 4500 16 4000 1000 300 0.011 120/84.6/27.7 W/GTO/DYN

DG858DW

 4500 16 3000 750 300 0.011 120/84.6/27.7 W/GTO/DYN

DGT304RE

 1300 1300 700 500 500 0.075 41.9/25/15 E/GTO/DYN

DGT305RE

 1800 1800 700 500 500 0.075 41.9/25/15 E/GTO/DYN

Pulse Power Thyristors
Type VDRM
[V]		 VRRM
[V]		 IT (AV)sub> TC= 80°C
[A]		 ITSM
[kA]		 dV/dt
[V/us]		 dI/dt
[A/us]		 to Ipk
[kA]		 Rth(j-c)
[°C/W]		 Dimensions
[mm]		 Casing
[Drawing No.]

ACR300SG33

 3300 20 493 6.5 3000 2000 0.125 0.042 58.5/34/27 G/IMP/DYN

PT40QPx45

 4500 16 760 13 200 5000 20 0.033 56/38/37 P/IMP/DYN

PT60QHx45

 4500 16 1000 22.5 175 10000 40 0.013 100/63/26.5 H/IMP/DYN

PT85QWx45

 4500 16 1670 37 200 22000 90 0.01 120/84.6/27.7 W/IMP/DYN
Bypass Thyristors
Type VDRM
[V]		 VRRM
[V]		 IT (AV)sub> TC= 80°C
[A]		 ITSM
[kA]		 dV/dt
[V/us]		 dI/dt
[A/us]		 to Ipk
[kA]		 Rth(j-c)
[°C/W]		 Dimensions
[mm]		 Casing
[Drawing No.]

ACR2900VR45

 1000 4500 - 39 10000 - - 0.00746 110/73/28.31 V/BYP/DYN

ACR3200VR33

 1000 3300 - 43 10000 - - 0.00746 110/73/28.31 V/BYP/DYN
Thyristors Casing

Drawing A/DYN

Drawing B/DYN

Drawing C/DYN

Drawing D/DYN

Drawing E/DYN

Drawing F/DYN

Drawing G/DYN

Drawing H/DYN

Drawing J/DYN

Drawing L/DYN

Drawing M/DYN

Drawing N/DYN

Drawing T/DYN

Drawing V/DYN

Drawing W/DYN

Drawing X/DYN

Drawing Y/DYN

Drawing C/GTO/DYN

Drawing E/GTO/DYN

Drawing H/GTO/DYN

Drawing P/GTO/DYN

Drawing W/GTO/DYN

Drawing X/GTO/DYN

Drawing G/IPM/DYN

Drawing H/IPM/DYN

Drawing P/IPM/DYN

Drawing W/IPM/DYN

Drawing V/BYP/DYN
Weniger
Weiterlesen
Kommentare (0)
