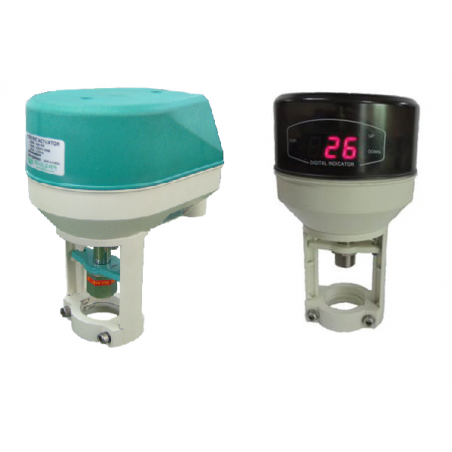

Elektrischer GEA-10P-Linearaktor
  • Elektrischer GEA-10P-Linearaktor

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: GINICE KOREA

Elektrischer GEA-10P-Linearaktor


Features:

  • Proportional or On-Off Electric Linear Actuator　
  • Stroke can be adjusted to suit the user's conditions using the auto setting button.
  • FND display with digit indicating the status of valve
  • Valve is closed or stop automatically in case input signal
  • is removed or failed.
  • Manual override with handle-wheel
  • Selectable input signal 4~20mA , 0-10VDC or 2-10VDC
  • Applied into Heating, Ventilation, Air conditioning or Ice thermal storage system


Technical data

Nominal Stroke (mm) 20mm
Nominal Force (KN) 1000N (1.0K)
Operating Time (Sec) 50sec (0.4mm/s)
Power Supply (V) 24VAC or 220VAC ± 10%
Operating mode Modulating or On-Off
Input Signal 4-20mA, 0-10VDC or 2-10VDC
Output Signal Same as input signal
Operation Temperature -15 ~ 60℃
Humidity 5 ~ 95% Rh
Enclosure IP 54 (DIN4050)
Conduit Entries PF1/2ｘ 2EA
Net Weight (Kg) 2.4Kg
