Hersteller: GINICE KOREA

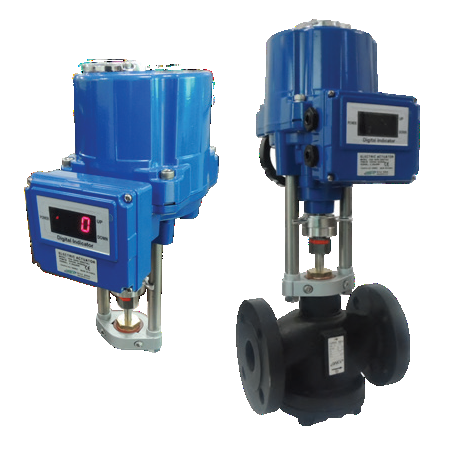

Elektrischer linearer Aktuator GEA-20 / 35PDW


Features:

  • Proportional or On-Off Electric Linear Actuator　
  • Self-Calibration using the auto setting button
  • Digit indicator (FND and LED lamp)
  • Durable aluminum structure suitable for severe environment conditions
  • Perfect enclosure(IP67) against rain, water, moisture or dust.
  • Simple [&] easy manual override with handle-wheel
  • Selectable input signal 4~20mA , 0-10VDC or 2-10VDC
  • Applied into Heating, Ventilation, Air conditioning or Ice thermal storage system


Technical data

Item GEA-20PDW  GEA-35PDW
Nominal Stroke (mm) 20mm  40mm
Nominal Force (KN) 2000N (2.0)  3500N (3.5)
Operating Time (Sec) 50sec (0.4mm/s)  100sec (0.4mm/s)
Power Supply (V) 24VAC or 220VAC ± 10% 24VAC or 220VAC ± 10%
Operating mode Modulating or On-Off Modulating or On-Off
Input Signal 4~20mA, 0-10VDC or 2-10VDC 4~20mA, 0-10VDC or 2-10VDC
Output Signal Same as input signal Same as input signal
Operation Temperature -15 ~ 65℃ -15 ~ 60℃
Humidity 5 ~ 95% Rh 5 ~ 95% Rh
Enclosure IP67 IP67
Conduit Entries PF1/2ｘ 3EA  PF1/2ｘ 3EA
Net Weight (Kg) 5.8Kg  5.9Kg
