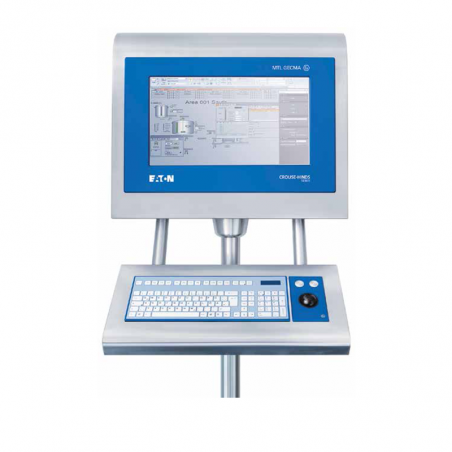

Computerterminal (RT) Ex in Zone 1/21 und 2/22 von MTL GECMA

The MTL GECMA Work Station range has been designed to address the environmental challenges of obtaining visualisation within harsh and hazardous areas. Building upon decades of experience and expertise and the significantly large installed base of its predecessor, the MTL GECMA Work Station is packed full of features and state-of-the-art technology. The range includes Remote Terminal (RT), Thin Client (TC) and Personal Computer (PC) to meet a wide variety of applications. Suitable for the strictest of hygienic conditions and aggressive production environments, its slim, flexible modular construction also includes individually certified modules to allow safe maintenance even in hazardous areas.

Unique modular design concept - key features

The MTL GECMA RT provides a user-friendly, near real-time ‘plug and play’ solution that enables a safe area PC or Thin Client to be remotely controlled from the hazardous area, via a single, point-to-point connection.
The MTL GECMA RT comprises of individually Ex certified, modular components from the MTL GECMA Work Station range, such as power supply, displays, keyboard, pointing device and mechanical hardware. The simple addition of a RT communication (COM) module is then added to deliver a Remote Terminal solution.

Electrical specification

	19"	22"	24"
Screen size	19" (48 cm)	21.5" (54 cm)	24" (61 cm)
Screen type	LCD thin film technology (TFT) with LED backlight
Display	1280 x 1024 px, 5:4 picture format, 16.7 million colours	1920 x 1080 px, 16:9 picture format, 16.7 million colours	1920 x 1200 px, , 16:10 picture format, 16.7 million colours
Brightness	250 cd/m2
Contrast ratio	1000:1 typical
Viewing angle	170/160° typical at CR ≥ 10
Touch screen (optional)	Resistive 5-wire glass touch screen
Technology	Proprietary full digital KVM transmission
Terminal unit
Power supply	AC 100-240V AC, 50/60Hz, DC 20-30V DC
Input power	50W (typical) / 100W (max)
Serial	RS232
USB	4x USB 2.0 EXi, transparent USB
Pointing device	2x Ex i PS/2 for keyboard and pointing device
Data cable (copper)	CAT 6A or higher recommended*
Fibre-optic cable	Multi mode or Single mode

Mechanical features

	19"	22"	24"
Housing material	Stainless steel V2A, EN std 1.4301, SAE grade 304 V4A, EN std 1.4404, SAE grade 316L (option) Electro polishing (option)
Weight	65 kg (full terminal)	69 kg (full terminal)	75 kg (full terminal)
Dimensions [mm]	(W x H x D) 509 x 429 x 50	(W x H x D) 610 x 400 x 50	(W x H x D) 675 x 461 x 50
Module assembly dimension without housing [mm]	509 (W) x 429 (H) x 125 (D*) * depth behind mounted display module	610 (W) x 400 (H) x 125 (D*) * depth behind mounted display module	675 (W) x 461 (H) x 125 (D*) * depth behind mounted display module

Safe area unit

Power supply	100 - 240VAC 50/60Hz
Input power	6W (typical) 25W (max) @ 4-fold Rack
Data and KB/Mouse port	USB
Serial port	RS232
Video in	DVI-D (DVI-I / VGA for request)
Video out	DVI-D

Enviromental specification

Temperature	Operating ambient temperature: -10°C to +50°C (10-90% RH, non-condensing) Certified ambient temperature: -30°C to +60°C (10-90% RH, non-condensing) Ambient storage temperature: -40°C to +70°C (10-90% RH, non-condensing)
Ingress protection	IP66 (front side)

Certification

Authority	Certificate Com Module: IECEx: SIR 14.0031X ATEX: 14ATEX5062X
Approved for	Certificate Code Com Module: With op is interface Ex mb[ib] op is IIC T4 Gb Without op is interface Ex mb[ib] IIC T4 Gb
