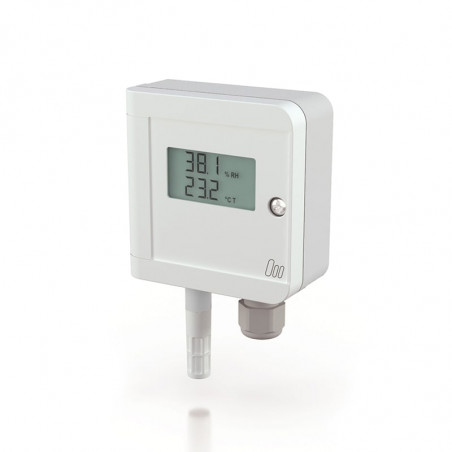

Feuchtigkeits- und Temperatursensoren

dynamic MELA® humidity sensing element
calibrated dModul for
humidity and temperature measurement
with integrated measuring chamber
easy to install
operating temperatures up to 60°C

The core part of the D Series is the digital calibrated dModul, which processes the measurement values of relative humidity and temperature individually. The values are compared to the calibration values stored in the dModul and communicated
digitally to the transmitter electronics, where they are processed to standardised current and voltage signals.
The integrated measuring chamber of the room version is separated from the electronics. Thus, a good air circulation around the sensing elements is provided.
The housing of the room version has a simple and robust closing mechanism. After mounting the base part, the top which contains the transmitter electronics, can be easily clipped into place and pressed shut without any tool.

Technical data
Humidity
output range	0...100%rh
measuring element	capacitive MELA FE09
measuring uncertainty
(40...60%rh @23°C)	±2,5% rh
(10...40%rh and 60...90%rh przy 23°C)	±3% rh
influence of temperature 40°C	±0,05%rh/K
Temperature
measuring element	Pt1000
output ranges	-0...+50°C
	-30...+70°C
	0...+100°C
further ranges on request
measuring uncertainty
sensors with active temperature signal
voltage output @ 10...40°C	±0,25 K
current output  @ 10...40°C	±0,4 K
influence of temperature	±0,01 K/K

General data
measuring medium	air, pressureless, non-aggressive
operating temperatures	-30...+60°C
storage temperatures	-40...+85°C
connection	connecting terminals
wire diameter per connector	max. 1,5mm2
cable diameter	max. 7mm
	(5 mm recommended)
degree of protection	IP30D
material of housing	ABS
color of housing	RAL 9003

Options
display:
	2 lines
	3 digits + 1 decimal place
	display approx. 21 x 40 mm²

Electrical data
outputs	0...1V DC
	0...10V DC
	4...20mA
passive temperature outputs on request
voltage supply	see type survey
consumption of electronics (voltage output)	typ. 7mA
load RL (current output)

min. load resistance (voltage output)
	>10 kΩ
electromagnetic compatibility	ref. EN 61326-1
	and EN 61326-2-3

Humidity sensor

Type survey DIK

Dimensions [mm]
