Fotos dienen nur zu Informationszwecken.
please use latin characters
Properties: | |

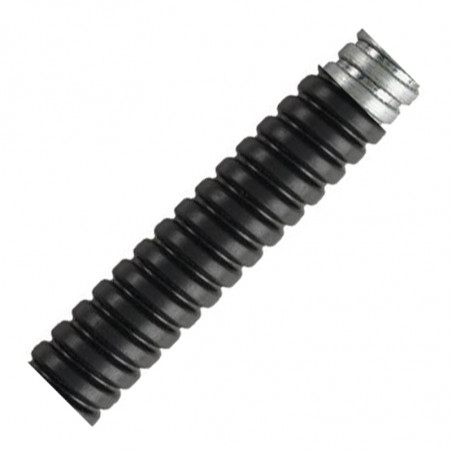

Materia: | Galvanised Steel Conduit with PVC coating |
Colour: | Black. Note: Grey or Orange available on request |
Fire Performance: | Self extinguishing |
Temperature Performance: | -15OC +70OC |
IP Rating | |
• | IP54 with M, S, P or F type fittings |
• | IP65 with C, C-S and C90 type fittings |
Compression Strength (20mm size): | 350kg/100mm |
Pull-off (Tensile) strength (20mm size): | 120 kg |
Typical Applications;
![]() |
Machinery and OEM’s | ![]() |
Construction |
Compliance, Approvals [&] Accreditation;
EN 61386 Classification Available on request
Nominal Size |
Part No. | Reel Length [m] |
OD [mm] |
Min ID [mm] |
Min inside Bend radius R [mm] |
---|---|---|---|---|---|
10 |
FSU10 |
25, 50 | 10.1 | 6.8 | 25 |
12 |
FSU12 |
25, 50 | 14.2 | 10.0 | 30 |
16 |
FSU16 |
10, 25, 50 | 17.1 | 12.9 | 40 |
20 |
FSU20 |
10, 25, 50 | 21.6 | 16.8 | 45 |
25 |
FSU25 |
10, 25, 50 | 26.0 | 20.9 | 55 |
32 |
FSU32 |
10, 25 | 34.0 | 27.8 | 60 |
40 |
FSU40 |
10, 25 | 44.2 | 37.3 | 80 |
50 |
FSU50 |
10, 25 | 55.0 | 48.0 | 90 |
63 |
FSU63 |
10 | 64.5 | 57.0 | 115 |
75 |
FSU75 |
10 | 79.2 | 69.4 | 150 |
Interessieren Sie sich für dieses Produkt? Benötigen Sie zusätzliche Informationen oder individuelle Preise?
