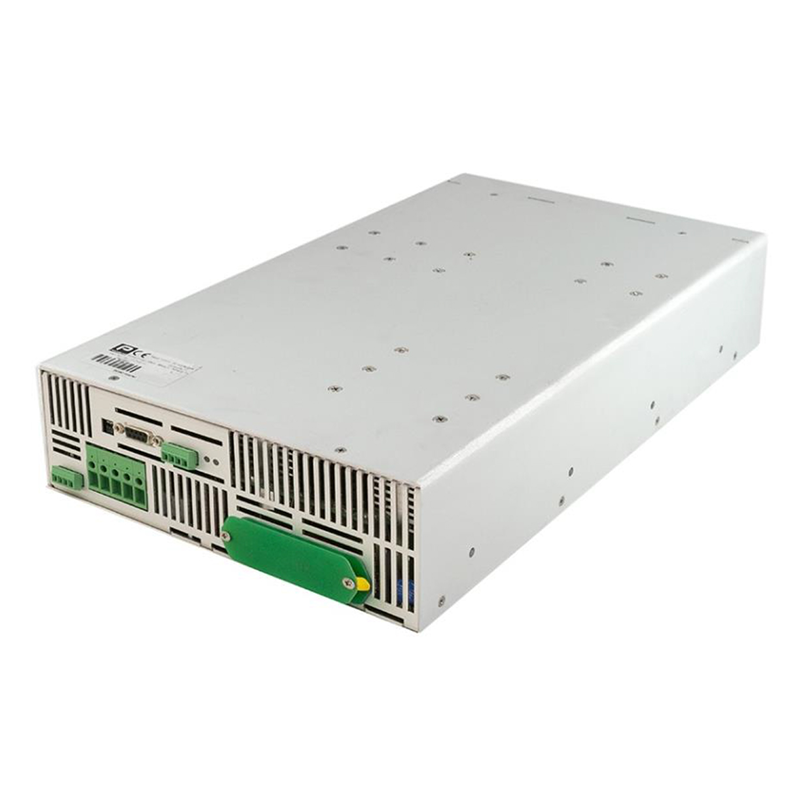

DC / AC-Dreiphasen-Wechselrichter für 4500 VA für Industrie- und Schienenanwendungen

The ODX-4500 three-phase sinusoidal DC/AC inverters series offers up to 4500VA. It has soft start and is programmable via RS232. These inverters are ready to work under harsh conditions thanks to its robustness and reliability.

KEY FEATURES

• Sine wave output voltage
• Suitable for motors control
• Selectable output frequency: 50/60Hz
• Adjustable output voltage
• High input-output isolation 3000Vrms
• Remote inhibit
• Reverse phase
• Remote control via RS232
• Alarm by isolated relay contacts
• Remote off opto-coupled
• Optional railway version EN50155
• Fire and smoke: EN45545-2 approved
• Efficiency up to 93%

PRODUCT WARRANTY

• 3 years for Industrial version
• 5 years for Railway version

ACCESSORIES

• Mounting brackets kit
• 19″ rackmount tray kit (2U)
