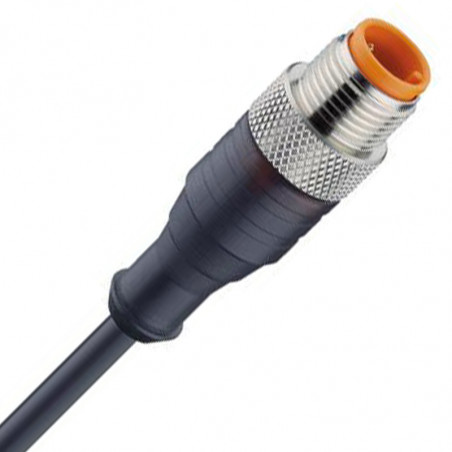

Lumberg-Kabel für Sensoren und Stecker mit M12-Thread

Technical data
Usage class HNA DIN 400 40 (-25°C do 80°C)
Current 4A
Operating voltage 3-4 contact: 250 V AC / 300 V DC
  5-8 contact: 30 V AC / 36 V DC
Contact base: TPU
Insulation group C -VDE 0110
Test voltage 2 kVwartskut/60s (1,5 kV for 5-8-poles)
contact CuZn, nickled i 0,8 μm golden
Insulation resistance >109Ω
Body handle: TPU, self-extinguished
Cable colour code According to EU standards
knurl screw self protected, CuZn, nickled
IP: IP 68
Cable: 34 or 5 x 0,34 mm2 jacket PUR or PCV,
  black or orange,
good resistance for chemicals (PCV) and oils (PUR)
  PUR cable :non halogen,



Producer number Description
3 contact male insert,
with cable drowned with PUR,
Ø cable 4,5 mm, colour black
Ø insert 14,5 mm, insert length 40,5 mm self protected screw connection M 12x1
cable length 2 m
  cable length10 m
RST 3-224/2 m
RST 3-224/10 m
4 contact male insert,
with cable drowned with PUR,
Ø cable 5 mm, colour black,
Ø insert 14,5 mm, insert length 40,5 mm self protected screw connection M 12x1
cable length 2 m
cable length 5 m
cable length 10 m
RST 4-225/2 m
RST 4-225/5 m
RST 4-225/10 m
4 or 5 contact male insert,
with  360°-shielding under knurl screw,
with cable drowned with PUR, 0 cable
5,5 mm or 6 mm (298), colour black
Ø insert 14,5 mm, insert length 46,5 mm
cable length 5 m, 4 pole
RSTS 4-288/5 m
RSTS 5 298/5m
3 contact female insert
4 pole, with cable drowned with PCV, 0 cable 5 mm, colour orange
Ø insert 14,5 mm, insert length 42 mm
self protected screw connection M12x1
Cable length  2 m
Cable length 5 m
RKT 4-3-06/2 m
RKT 4-3-06/5 m
3 contact female insert
4 pole, with cable drowned with PUR, -0 cable 4,5 mm, black,
Ø insert 14,5 mm, insert length 42 mm
self protected screw connection M 12x1
Cable length 2 m
Cable length 5 m
RKT 4-3-224/2 m
RKT 4-3-224/5 m

Producer number Description
4 contact female insert
with cable drowned with PCV, Ø cable 5 mm,
colour orange, 4x 0,25 mm2 (32x 0 0,1mm),
Ø insert 14,5 mm, insert length 42 mm
self protected screw connection M 12x1
cable length 2m
cable length 5 m
cable length 10 m
RKT 4-07/2 m
RKT 4-07/5 m
RKT 4-07/10 m
4 contact female insert
with cable drowned with PUR,
Ø cable 5 mm, colour black,
Ø insert 14,5 mm, length40 mm
self protected screw connection M 12x1
cable length 2 m
cable length 5 m
cable length 10 m
RKT 4-225/2 m
RKT 4-225/5 m
RKT 4-225/10 m
3 contact female insert
4 contact
with cable drowned with PUR and 2 LED (yellow/ green) for operation and function signal. Operating voltage limited to 10...30 V DC
  LED.Connection:  NO pnp
cable length 2 m
cable length 5 m

RKT/LED A4-3-224/2m
RKT/LED A4-3-224/5m
4 or 5 contact female insert
with 360°- shielding under knurl screw
with cable drowned, Ø 6 mm (182,288)
or 6 mm (298), colour black,
Ø insert 14,5 mm, insert length 43 mm, 4 contact cable PU R 5 m, 5 contact
RKTS 4-288/5 m
RKTS 5-298/5 m
3 contact female insert kątowy
4 contact
with cable drowned with PUR,
Ø cable 4,5 mm, colour black
Ø insert 14,5 mm, length 38/26 mm
self protected screw connection M 12x1
cable length 2 m
cable length 5 m
cable length 10 m
RKWT 4-3-224/2 m
RKWT 4-3-224/5 m
RKWT 4-3-224/10 m
4 contact female insert,angular,
with PCV cable, 4 x 0,25 mm2 (32x 0 0,1mm),
Ø cable 5 mm, colour orange B85,
Ø insert 14,5 mm, length 38/26 mm
self protected screw connection M 12x1
cable length 2 m
cable length 5 m
cable length 10 m
RKWT 4-07/5 m
RKWT 4-07/10 m

Producer number Description
4-contact connector, insert
 with PUR cable, Ø cable 5 mm, colour black ,
Ø insert 14,5 mm, długość 38/26 mm
self protected screw connection M 12x1
cable length 2 m
cable length 5 m
cable length 10 m

RKWT 4-225/2 m
RKWT 4-225/5 m
RKWT 4-225/10 m
5-contact connector, insert,angular
with PCV cable, Ø cable 5,7 mm, colour orange,
0 insert 14,5 mm, length 38/26 mm
self protected screw connection M 12x1
cable length 2 m
cable length 5 m
RKWT 5-56/2 m
RKWT 5-56/5 m
3-contact connector, insert,angular
4-pole
with cable drowned, 3-pole PCV, colour orange and
2 LED (green/yellow) for operation and function signal .
Operating voltage limited to 10...30 V DC
Connection: NO pnp
cable length 2 m
cable length 5 m
cable length 10 m
RKWT/LED A 4-3-06/2 m
RKWT/LED A 4-3-06/5 m
RKWT/LED A 4-3-06/10m
3-contact connector, insert,angular
4-pole
with drowned 3- pole cable from PCV, colour orange
and 2 LED (yellow/green)
for operation and function signal.
Operating voltage limited to 10..30 V DC.
Connection :NO pnp
cable length 2 m
cable length 5 m
cable length 10 m
RKWT/LED A 4-3-31/2 m
RKWT/LED A 4-3-31/5 m
RKWT/LED A 4-3-31/10 m
3-contact connector, insert,angular
4-pole
with drowned 3- pole cable from PUR, colour black
and 2 LED (yellow/green) for operation and function signal.
Operation voltage limited to 10..30 V DC
. Connection: NO pnp
cable length 2 m
cable length 5 m
cable length 10 m
RKWT/LED A 4-3-224/2m
RKWT/LED A 4-3-224/5m
RKWT/LEDA 4-3-224/10 m

Producer number Description
4-contact connector, insert,angular, with 2 diodes
 LED
  cable drowned with PCV, colour orange
With 3 LED (yellow /yellow/ green) for operation and function signal. Operation voltage limited to 10...30 VDC .
Connection NO/NC pnp =yellow/ yellow/ green (Antivalent)
cable length 5 m
cable length 10 m
RKWT/LED P 4-07/5 m
RKWT/LEDP 4-07/10m
4-contact connector, insert,angular, with 3 diodes
cable drowned with PUR, colour black.
with 3 LED (yellow/yellow/ green) for operation and function signal. Operation voltage limited to 10...30 VDC.
Connection NO/NC pnp =yellow/ yellow/ green (Antivalent)
cable length 5 m
cable length 10 m
RKWT/LED P 4-225/5 m
RKWT/LED P 4-225/10 m

Producer number Description
Male socket for front assembly
With cable 50 cm.
Thread M16 from assembly side,
Screw connection from behind, RSKFM 16 (additional order).
Male socket for assembly 3 contact
Male socket for assembly 4 contact
Male socket for assembly 5 contact
Male socket for assembly 6 contact
RSFM 3/0,5 m
RSFM 4/0,5 m
RSFM 5/0,5 m
RSFM 8/0,5 m
Male socket for front assembly
Position control nut.
With cable: 50 cm.
Thread M16 from assembly side,
Screw connections from behind RSKFM 16 (additional order).
Male socket for assembly 4 contact
RSFPM 4/0,5m

Female socket for front assembly
With cables: 50 cm,
Thread M16 from assembly side,
Screw connections from behind RSKFM 16 (additional order).
Female socket4 contact
Female socket4 contact
Female socket5 contact
Female socket8 contact
4x0,34/1x0,5 mm2
RKFM 4-3/0,5m
RKFM 4/0,5m
RKFM 5/0,5m
RKFM 8/0,5m
Female socket for front assembly
Position control nut.
Cable: 50 cm.
Thread M16 from assembly side,
Screw connections from behind RSKFM 16 (additional order).
Female socket 4 contact
RKFPM 4/0,5m
     RSKFM 16
Assembly nut RSKFM 16
CuZn, nickled, metric thread
