Hersteller: Kyoritsu

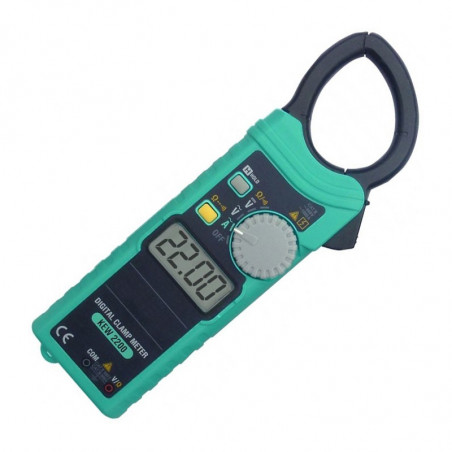

KEW2200 Meter mit Rogowski-Spule 0,01 ~ 1000A

  • Ultra Slim and lightweight Handy design
  • 1000A AC Clamp Meter AC40/400/1000A Auto Range
  • Ø33mm Tear Drop Jaw easy to use in tight places
  • DMM function ACV, DCV, Ω, Continuity Buzzer
  • Fuseless electronic protection on up to 600V
  • IEC61010-1 Safety Standard CAT.Ⅲ600V (AC A)
    CAT.Ⅲ300V/CAT.Ⅱ600V (AC/DC V)



KEW 2200
AC V

40.00/400.0/1000A (Auto-ranging)
±1.4%rdg±6dgt(50/60Hz)
±1.6%rdg±6dgt(45~65Hz)
AC V 4.000/40.00/400.0/600V (Auto-ranging)
±1.8%rdg±7dgt(45~65Hz)
±2.3%rdg±8dgt(65~500Hz
DC V 400.0mV/4.000/40.00/400.0/600V (Auto-ranging)
±1.0%rdg±3dgt
Resistance 400.0Ω/4.000/40.00/400.0kΩ/4.000/40.00MΩ (Auto-ranging)
±2.0%rdg±4dgt(0~400kΩ)
±4.0%rdg±4dgt(4MΩ)
±8.0%rdg±4dgt(40MΩ
Continuity buzzer buzzer sonunds below R <50Ω ±35Ω
Conductor size Ø33 max
Withstand voltage 5320V AC for 5 seconds(AC A)
3540V AC for 5 seconds(AC/DC V)
Applicable standards IEC 61010-1 CAT.Ⅲ 600V (AC A),
CAT.Ⅲ 300V/CAT.Ⅱ 600V(AC/DC V),
Pollution degree 2
IEC 61010-031, IEC 61010-2-032
IEC 61326(EMC
Power source R03/LR03(AAA)(1.5V) × 2
Dimensions 190(L) × 68(W) × 20(D)mm
Weight Approx. 120g(including batteries)
Accessories 7107A(Test leads)、9160(Carrying case)、R03(AAA)× 2,
Instruction manual
Optional 8008(Multi-tran)
