Hersteller: Eaton / CEAG

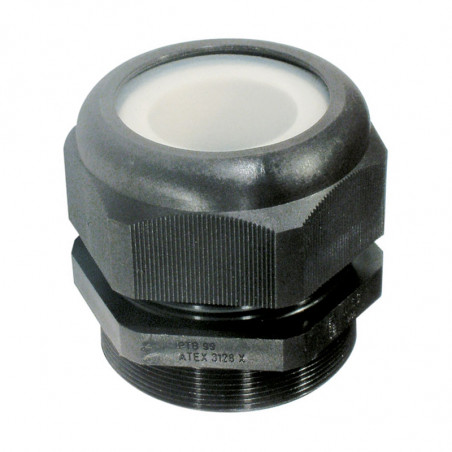

Kunststoffkabelverschraubungen Capri / CeAG / CROUSE-HINDS

Cable glands GHG 960 series with metric screw-in threads are now standard and had replace the PG cable glands that were formally used. The CEAG plastic cable glands are in accordance with EN 60079-0: 2012 and can be used in Ex-e/Ex-i housings in hazardous areas of the Zones 1, 21, 2 and 22. Optional and not used cable glands must be closed with cer-tified blanking plugs. The blank-ing plugs allow for a flexible and cost effective utilization of the explosion-protected appliances. Changes and upgrades can be then easily carried out at a later date. The outstanding feature of the CEAG cable glands is the large cable connection area. A high IP safety standard is achieved with the integrated sealing lip on the screw-in cable entries. Depending on the sur-face roughness the use of an additional sealing ring may not be necessary. The good me-chanical and handling features are achieved by using a modi-fied Polyamide material and a optimized tooling area.



Ex-cable plastic glands


Screw plug

 Blanking plug

 Cable gland -55°C Ex-e

 Cable gland -20°C Ex-i



Technical data


Ex-e cable glands
Marking accd. to 2014/34/EU EX II 2 G Ex eb IIC Gb / EX II 2 D Ex tb IIIC Db
EC-Type Examination Certificate PTB 14 ATEX 1015 X
IECEx Certificate of Conformity IECEx PTB 14.0027X
Marking accd. to IECEx Ex eb IIC Gb / Ex eb IIC Gb
Permissible ambient temperature
M20
M25 - M63		 -20℃ up to +70℃ (see ordering details)
-40℃ up to +70℃ (see ordering details)
-55℃ up to +70℃ (see ordering details)
Degree of protection accd. to EN 60529 IP66 / IP68: 1 m water depth for 0.5 h
Enclosure material Polyamide
Ex-e screw plug
Marking accd. to 2014/34/EU EX II 2 G Ex e II / EX II 2 D Ex tb IIIC Db IP66 (M63 tylko dla II 2 G)
EC-Type Examination Certificate PTB 98 ATEX 3130
IECEx Certificate of Conformity IECEx PTB 03.0000
Marking accd. to IECEx Ex e IIC Gb / Ex tb IIIC Db IP66/IP65 (M63 tylko dla II 2 G)
Permissible ambient temperature -55℃ ÷ +55℃
Degree of protection accd. to EN 60529 IP66 / IP68: 1 m głębokości przez 0,5h
Enclosure material Polyamide
Blanking plug / Reducing rings
Marking accd. to 2014/34/EU EX II 2 G Ex e IIC Gb / EX II 2 D Ex tb IIIC Db IP66
EC-Type Examination Certificate PTB 14 ATEX 1015X
IECEx Certificate of Conformity IECEx PTB 14.0027X
Marking accd. to IECEx Ex eb IIC Gb / Ex tb IIIC Db
Permissible ambient temperature -55℃ to +70℃
Degree of protection accd. to EN 60529 IP66
Enclosure material Polyamide



Ex-e/i cable plastic glands


Cable gland -55°C Ex-e

 Cable gland -20°C Ex-i

 Cable gland -20°C Ex-e

 Multiple cable gland



Ordering details


Thread Cable Ø [mm] A/F [mm] L [mm] E [mm] OU (Order Units) Order No.
Seal. 1+2+3 Seal. 1+2 Seal. 1 (-20°C up to +70°C) (-40/-55°C up to +70°C)
Ex-e cable gland with short thread accd. to EN 50262 - black
M12 x 1.5   - 5-7 15 19.3 8 20 GHG9601955R0001 -
M16 x 1.5   5.5 – 7 7-10 20 23.0 8 20 GHG9601955R0002 -
M20 x 1.5 5.5 – 7 7 - 9 9.5 – 13 24 25.0 8 20 GHG9601955R0003 -
M20 x 1.5 5.5 – 7 7 - 9 9.5 – 11 24 25.0 8 20 - GHG9601955R0010
M25 x 1.5 8 – 10 10 - 13 13.5 – 17.5 29 29.5 8 20 GHG9601955R0004 -
M25 x 1.5 8 – 10 10 - 13 13.5 – 15 29 29.5 8 20 - GHG9601955R0009
M32 x 1.5   14 - 17 17.5 – 21 36 35.5 10 20 GHG9601955R0005 GHG9601955R0011
Ex-e cable gland with long thread - black
M12 x 1.5   - 5-7 15 19.3 12 20 GHG9601955R0021 -
M16 x 1.5   5.5 - 7 7-10 20 23.0 12 20 GHG9601955R0022 -
M20 x 1.5 5.5 - 7 7 - 9 9.5 - 13 24 25.0 13 20 GHG9601955R0023 -
M20 x 1.5 5.5 - 7 7 - 9 9.5 - 11 24 25.0 13 20 - GHG9601955R0029
M25 x 1.5 8 - 10 10 - 13 13.5 - 17.5 29 29.5 13 20 GHG9601955R0024 -
M25 x 1.5 8 - 10 10 - 13 13.5 - 15 29 29.5 13 20 - GHG9601955R0030
M32 x 1.5   14 - 17 17.5 - 21 36 35.5 15 20 GHG9601955R0025 GHG9601955R0031
M40 x 1.5   19 - 22 22 - 28 46 39.5 15 10 - GHG9601955R0026
M50 x 1.5   24 - 28 28 - 35 55 44.0 16 10 - GHG9601955R0027
M63 x 1.5   29 - 35 36 - 481) 68 47.0 16 5 - GHG9601955R0028
Ex-i cable gland with short thread - blue
M12 x 1.5   - 5-7 15 19.3 8 20 GHG9601955R0101 -
M16 x 1.5   5.5 - 7 7 - 10 20 23.0 8 20 GHG9601955R0102 -
M20 x 1.5 5.5 - 7 7 - 9 9.5 - 13 24 25.0 8 20 GHG9601955R0103 -
M20 x 1.5 5.5 - 7 7 - 9 9.5 - 11 24 25.0 8 20 - GHG9601955R0109
M25 x 1.5 8 - 10 10 - 13 13.5 - 17.5 29 29.5 8 20 GHG9601955R0104 -
M25 x 1.5 8 - 10 10 - 13 13.5 - 15 29 29.5 8 20 - GHG9601955R0110
M32 x 1.5   14 - 17 17.5 - 21 36 35.5 10 20 GHG9601955R0105 GHG9601955R0111
Ex-i cable gland with long thread - blue
M12 x 1.5   - 5-7 15 19.3 12 20 GHG9601955R0121 -
M16 x 1.5   5.5 - 7 7 - 10 20 23.0 12 20 GHG9601955R0122 -
M20 x 1.5 5.5 - 7 7 - 9 9.5 - 13 24 25.0 13 20 GHG9601955R0123 -
M20 x 1.5 5.5 - 7 7 - 9 9.5 - 11 24 25.0 13 20 - GHG9601955R0129
M25 x 1.5 8 - 10 10 - 13 13.5 - 17.5 29 29.5 13 20 GHG9601955R0124 -
M25 x 1.5 8 - 10 10 - 13 13.5 - 15 29 29.5 13 20 - GHG9601955R0130
M32 x 1.5   14 - 17 17.5 - 21 36 35.5 15 20 GHG9601955R0125 GHG9601955R0131
M40 x 1.5   19 - 22 22 - 28 46 39.5 15 10 - GHG9601955R0126
M50 x 1.5   24 - 28 28 - 35 55 44.0 16 10 - GHG9601955R0127
M63 x 1.5   29 - 35 36 - 481) 68 47.0 16 5 - GHG9601955R0128

1) M63 with additional sealing
Cable glands with PG-thread are available on request. The order No. will show 1 pcs. Please note that only order units (OU) can be ordered.



Enlargement cable gland

 Reducing rings

 Screw plug

 Blanking plug



Thread Cable Ø [mm] A/F [mm] L [mm] E [mm] OU Product No.
Seal. 1+2 Seal. 1 (-20°C up to +70°C) (-40/-55°C up to +70°C)
Multiple cable glands - black
M25 x 1.5 2 x 4.5 - 7   29 29.5 8 20 GHG9601955R0054 -
M32 x 1.5 4 x 4.5 - 7   36 35.5 10 20 GHG9601955R0055 -
Slotted cable glands for special cables (Breakout-internal cable type orange/ Ultra-Fox Plus type 903 AG 621 02 709/ Ehret / ICS 24 type 84 305 ... ..)2)
M20 x 1.5 czarna2)     24 25.0 8 20 GHG9601955R0403
M20 x 1.5 niebieska2)     24 25.0 8 20 GHG9601955R0413
Enlargement cable glands (reduced thread diameter)
M16/M20 7 - 9 9.5 - 13 24 25.0 12 20 GHG9601956R0002
M20/M25 10 - 13 13.5 - 17.5 29 29.5 13 20 GHG9601956R0003
M25/M32 14 - 17 17.5 - 21 36 35.5 13 20   GHG9601956R0004
M32/M40 19 - 22 22 - 28 46 39.5 15 10   GHG9601956R0005
M40/M50 24 - 28 28 - 35 55 44.0 15 10   GHG9601956R0006
M50/M63 29 - 35 36 - 481) 68 47.0 16 5   GHG9601956R0007


  E [mm] Ø D [mm] Weight [kg] OU Product No. (-55°C up to +70°C)
Blanking plug for cable glands
M12 30.3 6.0 0.001 20 GHG9601944R0101
M16 33.0 7.0 0.001 20 GHG9601944R0102
M20 34.5 8.5 0.002 20 GHG9601944R0103
M25 36.0 11.0 0.003 20 GHG9601944R0104
M32 39.5 14.0 0.005 20 GHG9601944R0105
M40 42.0 20.0 0.018 10 GHG9601944R0106
M50 44.0 26.0 0.033 10 GHG9601944R0107
M63 45.0 34.0 0.108 5 GHG9601944R0108


Thread L [mm] E [mm] Ø D [mm] Weight [kg] OU Product No. (-55°C up to +70°C)
M16 x 1.5 4.0 12 21.5 0.002 20 GHG9601952R0111
M20 x 1.5 4.0 13 25.5 0.004 20 GHG9601952R0112
M25 x 1.5 4.0 13 30.5 0.007 20 GHG9601952R0113
M32 x 1.5 5.5 15 37.5 0.013 10 GHG9601952R0114
M40 x 1.5 5.5 15 45.5 0.020 10 GHG9601952R0115
M50 x 1.5 5.5 16 55.5 0.030 5 GHG9601952R0116
M63 x 1.5 6.5 16 85.0 0.040 5 GHG9601952R0117

1) M63 with additional sealing
2) Cable dimensions and ambient temperatures see operating instruction
Cable glands with PG-thread are available on request.
The order No. will show 1 pcs. Please note that only order units (OU) can be ordered.


Ex-plastic reducer rings


Cable gland

 Screw plug

 Blanking plug

 Reducting ring


Thread 1 Thread 2 A/F [mm] L [mm] E [mm] L1 [mm] Weight [kg] OU Product No. (-55°C ÷ +70°C)
Reducig rings
M20 x 1.5 M16 x 1.5 24 6 8 8 0.014 20 GHG9601946R0071
M25 x 1.5 M20 x 1.5 29 6 8 8 0.016 20 GHG9601946R0072
M32 x 1.5 M20 x 1.5 36 6 10 6 0.017 20 GHG9601946R0056
M32 x 1.5 M25 x 1.5 36 6 10 10 0.016 20 GHG9601946R0074
M40 x 1.5 M25 x 1.5 46 6 10 8 0.023 10 GHG9601946R0059
M40 x 1.5 M32 x 1.5 46 6 10 10 0.021 10 GHG9601946R0077
M50 x 1.5 M32 x 1.5 55 6 12 10 0.036 10 GHG9601946R0062
M50 x 1.5 M40 x 1.5 68 6 12 10 0.032 10 GHG9601946R0080
M63 x 1.5 M40 x 1.5 68 6 12 10 0.040 5 GHG9601946R0065
M63 x 1.5 M50 x 1.5 68 6 12 12 0.030 5 GHG9601946R0083

Cable glands with PG-thread are available on request.
The order No. will show 1 pcs. Please note that only order units (OU) can be ordered.


Dimension drawing
