Hersteller: Victron energy

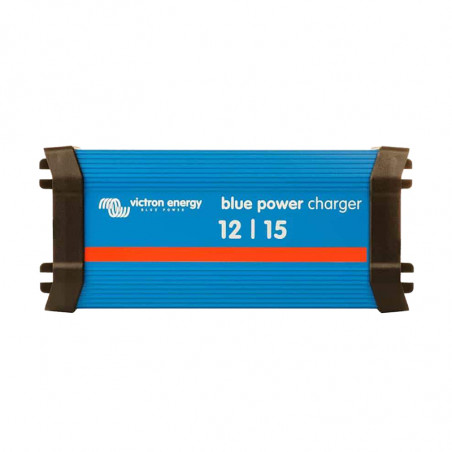

Victron Energy Blue Power Battery Ladegerät IP20

Microprocessor controlled  Blue Power Charger

  • Protection category IP20
  • Efficiency up to 95%
  • 4-stage charge algorithm
  • LED status indication
  • Input voltage 180-265 VAC or 250-350VDC
  • Temperature range  -20÷+60°C
  • Can be used as power supply
  • Protection: battery reverse polarity, output short circuit, over temperature

Type Part number Nominal charging voltage
[V]
Charging current [A] Minimum battery capacity
[Ah]
Number of outputs Cooling

Blue Power Charger 12/7 IP20 (1)

BPC120706000

12 7 24 1 Fanless

Blue Power Charger 12/10 IP20 (1)

BPC121006000

12 10 30 1 Fanless

Blue Power Charger 12/15 IP20 (1)

BPC121506000

12 15 45 1 Fanless

Blue Power Charger 24/5 IP20 (1)

BPC240506000

24 5 16 1 Fanless

Blue Power Charger 24/8 IP20 (1)

BPC240806000

24 8 24 1 Fanless

Blue Power Charger 12/25 IP20 (1)

BPC122506000

12 25 75 1 Fan

Blue Power Charger 12/25 IP20 (3)

BPC122505000

12 25 75 3 Fan

Blue Power Charger 24/12 IP20 (1)

BPC241206000

24 12 45 1 Fan

Blue Power Charger 24/15 IP20 (3)

BPC241505000

24 15 45 3 Fan

Chargers Victron Energy Blue Power Charger IP20 been replaced by Blue Power Charger IP22
