Flache Lampe mit Bewegungssensor - Slimline Zeile SL025 Serie
  • Flache Lampe mit Bewegungssensor - Slimline Zeile SL025 Serie

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: STEGO

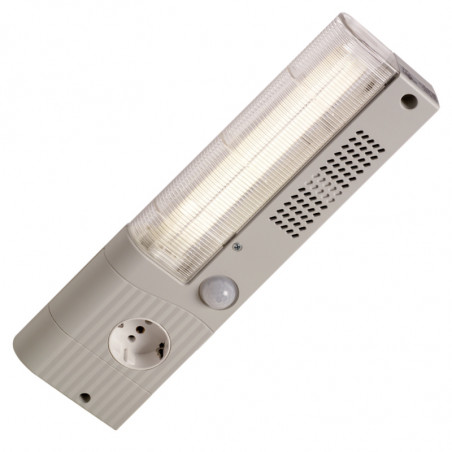

Flache Lampe mit Bewegungssensor - Slimline Zeile SL025 Serie

Flat casing
Electronic trigger
Lamp with or without socket
Mounted with magnet (option)
Energy saving lamp
Automatic light turn on

Technical data
Power
11W (respond to bulb 75 W)
brightness
900 Lm
Light source type
Energy saving bulb
Lifetime
10 000 h
Switch
Motion sensor PIR, turn on time. 6min, default setting
Terminals
2, 5 mm2
Mounting
Screws,M5,330mm distance,
Mounted with magnet (option)
Casing
plastic  UL94V-0, light grey
Dimensions
345 x91 x40 mm
Assembly
Arbitrary
Operation temperature
-20 do 50°C
IP
IP20



Catalogue number
Article number Power supply Power supply Socket Current Weight Protection class Certificates
02520.0-03 without magnet AC 230V, 50/60 Hz Germany(1) 16,0 A 0,40 kg I (PE) VDE
02520.1-03 with magnet AC 230V, 50/60 Hz Germany(1) 16,0 A 0,60 kg I (PE) VDE
02521.0-03 without magnet AC 230V, 50/60 Hz France/Poland (2) 16,0 A 0,40 kg I (PE) VDE
02521.1-03 with magnet AC 230V, 50/60 Hz France/Poland  (2) 16,0 A 0,60 kg I (PE) VDE
02522.0-03 without magnet AC 230V, 50/60 Hz Switzerland(3) 10,0 A 0,40 kg I (PE) VDE
02522.1-03 with magnet AC 230V, 50/60 Hz Switzerland(3) 10,0 A 0,60 kg I (PE) VDE
02523.0-03 without magnet AC 230V, 50/60 Hz Great Britain/Ireland  (4) 13,0 A 0,40 kg I (PE) VDE
02523.1-03 with magnet AC 230V, 50/60 Hz Great Britain/Ireland  (4) 13,0 A 0,60 kg I (PE) VDE
02524.0-04 without magnet AC 120V, 50/60 Hz USA/Canada (5) 15,0 A 0,40 kg I (PE) UL
02524.1-04 with magnet AC 120V, 50/60 Hz USA/Canada (5) 15,0 A 0,60 kg I (PE) UL
02527.0-04 without magnet AC 230V, 50/60 Hz without socket 16,0 A 0,40 kg II (with insulation) VDE, UL
02527.1-04 with magnet AC 230V, 50/60 Hz without socket 16,0 A 0,60 kg II (with insulation) VDE, UL
02527.0-12 without magnet AC 120V, 50/60 Hz without socket 16,0 A 0,40 kg II (with insulation) UL
02527.1-12 with magnet AC 120V, 50/60 Hz without socket 16,0 A 0,60 kg II (with insulation) UL
