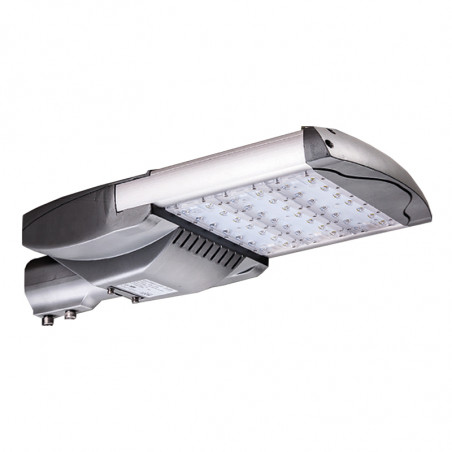

LED-Straßenlaternen

The light distribution of the pole light-series is generated by a special optic. Because of this optic a traditional re ector is not needed anymore. By using these optics the lumen loss gets reduced and the whole lamp e ciency getsbetter. By using asymmetric wide beam optics we can create light distributions for almost every scenario. Mounting heights of 20 metres are not a problem for these lamps. The photometrical  les of these luminaires can be downloaded on our homepage.

To get a relieable and e cient light source we have chosen a diode from the well known company Philips. These LEDs have great light quality, high e ciency and long life span. This means low maintenance intervals and thus for a cost-e ective and economic use outdoors.


Specications
Light source KSE - LED ENGINE
Power 35 W to 235 W
Lumen output 3.325 lm do 21.850 lm
CCT 5.000 K (others optional)
CRI >70
Lifespan at 25°C
( L70 B50)
50.000 h
Failure rate 0,10 % po 5000 h
Usage temperature -40°C to +50°C
Driver integrated
Voltage AC 100 V - 240 V, 50/60 Hz
Housing matrial aluminium
Color housing silvergrey and black
Optics asymmetric wide beam
Mainternace LED engine changeble
Warranty time 5 years
Level of security IP 65

Technical details:
  • Compact and light weight design,
  • different power options between 35 W- 235 W,
  • lumen output between 3.325- 21.850 lumens,
  • standard light color 5.000 Kelvin (others on request),
  • high CRI >70 (higher on request),
  • dimmable ballast optional available,
  • perfect thermal managment,
  • high protection grade IP65 / IK08
  • up to 95 lm/W total efficiency,
  • long lifespan - 60.000 h at T 25°C
  • light creates high contrast outdoors,
  • 100% light power by switching on,
  • great light distribution
Product number Optyka Lumeny
[lm]
Moc
[W]
Waga
[kg]
Ilosc LED

ML-21030-5000-HE

Asymmetric wide beam 3.325 35 5,3 14

ML-21060-5000-HE

Asymmetric wide beam 6.175 65 6,1 28

ML-21090-5000-HE

Asymmetric wide beam 9.500 100 7,3 42

ML-21120-5000-HE

Asymmetric wide beam 12.825 135 8,2 56

ML-21150-5000-HE

Asymmetric wide beam 15.675 165 9,0 70

ML-21180-5000-HE

Asymmetric wide beam 19.000 200 9,9 84

ML-21210-5000-HE

Asymmetric wide beam 21.850 230 10,8 98

Isolux diagrams and installation advice

ML - 21030 - 5000 - HE
installation advice: 4 - 6 metres
ML - 21060 - 5000 - HE
installation advice: 5 - 8 metres
ML - 21090 - 5000 - HE
installation advice: 7 - 10 metres
ML - 21120 - 5000 - HE
installation advice: 8 - 12 metres
ML - 21150 - 5000 - HE
installation advice: 10 - 13 metres
ML - 21180 - 5000 - HE
installation advice: 10 - 15 metres
ML - 21210 - 5000 - HE
installation advice: 12 - 20 metres


Delivery information

• color temperature LEDs 5.000 K/750 (others optional)
• simple electronic driver without functions
• mounting accessories for entry and top mounting for pole diameter Φ60mm
• optional with a dimmable electronic driver, dimmable over 1-10V DC interface, PWM or resistance, on request also DALI-interface
• optional with built-in photocell for automatically switch-on and switch-o



Dimensions of the lights
