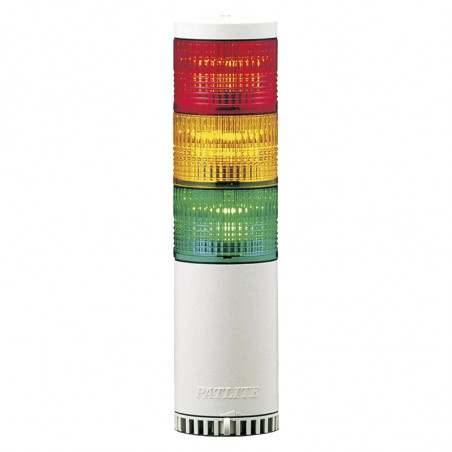

LCE - 40 mm Durchmessersignaltürme
  • LCE - 40 mm Durchmessersignaltürme

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: Patlite

LCE - 40 mm Durchmessersignaltürme

Technical data
· PATLITE’s Exclusive Hybrid Prism Cut Lens: For enhanced visibility from any direction and distance.
· Original Dual Reflection System: For enhanced light diffusion, creating bright, distinctive illumination while saving energy
· Built-in Alarms (FB Type): 2 selectable sound patterns with adjustable volume up to 85dB at 1m.
· Installation: Direct or pole mount.
· Color-coordinated Wiring: Corresponds to the lens colors for quick wiring verification.
· Interchangeable LED Modules: No re-wiring even after installation.
· Main Body: ABS resin with superior resistance to impact and heat
· Lens: Superior impact resistant and light translucent AS resin.
· NPN/PNP Compatible: For 24V DC type; M2 type compatible with NPN only.
· Available Colors: Red, Amber, Green, Blue, Clear/White.
· High visibility from any angle.
· Adjustable volume Max. 85dB at 1m






SIZE - 40mm diameter
INPUT VOLTAGES - 24V AC/DC
- 90-250V AC
FUNCTIONS - Continuous Only
- Continuous, Flashing, Alarms
MOUNTING - Pole Mount: includes a 300mm steel pole, SZ-012 angle bracket, 2 nuts, 2 washers
- Direct Mount: includes 3 mounting nuts
BODY STYLE - Pre-assembled, pre-wired
- Interchangeable and stackable modules after purchase
BODY COLOR - Body: Beige
TIERS - Up to 5 modules can be stacked
MODULE COLORS - Red
- Amber
- Green
- Blue
- Clear
BUZZER - Alarm 1: Selectable, single-tone, intermittent (fast beep) alarm; 85dB (at 1m)
- Alarm 2: Selectable, single tone, intermittent (slow beep) alarm; 85dB (at 1m)
CONFORMITY STANDARDS - CE Marking
- UL Component Recognition (US)
- c-UL Component Recognition (Canada)
- RoHS
PROTECTION RATINGS - LCE-W: IP-65
- LCE, LCE-FBW, LCE-FB: IP-54
- Type 4 / 4X / 13 (Indoor, Direct Mount Only)



Dimensions[mm]
Catalogue number
1 - Module number:
   1...5
2 - Supply voltage:
   02: 24V DC
3 - Profile colour:
   nothing: beige
   U: silver
4 - Signalisation:
   nothing: constant light
FB: constant light or blinking with sound signal
5 - Assembly:
   nothing: outrigger (with bracket SZ-012)
   K: outrigger (with bracket SZ-021)
   W: Direct assembly
6 - Colour:
   R - Red FB:
   Y - Yellow 5
   G - Green
   B - Blue
   C - Transparent
