LED-Hose TL-Ex

Characteristics

• With its reflector which have different angles design, it efficiently utilize the light. Have a good performance of illuminance uniformity , glare free, can avoid eyestrain to the worker.
• It adopts American CREE LED as light source, can save 60% or more on energy than metal halide lamp.
• The housing is especially designed to dissipate heat, which increase the efficiency and lifespan of the LED, so that to ensure the 100,000 hours LED lifespan.
• World top ranking Taiwan Meanwell LED Driver, power factor:0.98, has a highly stable performance.
• The adjustable locking device on the bracket can tightly fix the lamp to any desired angle, making the lamp resist to harsh vibration
• The anti corrosion, abrasion proof, power coated cover which is dust proof, water proof , make the lamp an excellent option for all kinds of high stress environment.
• Multiple mounting options including ceiling mounting, pendent mounting, wall mounting etc.
• The lamp can parallel connected , no need to use the junction box.
• 18~43V AC or 18~55VDC is optional for 25W and 40W as customer's requirement.

Approvals
ATEX: II 2 GD Ex d IIB T6 Gb, Ex tb IIC T80^oC Db
Normy: GB3836.1, GB3836.2, EN60079-0: 2009, EN60079-1: 2007, EN60079-31: 2009, IEC60079-0: 2007, IEC60079-1: 2007, IEC60079-31: 2008

Light distribution curve

T echnical Specification

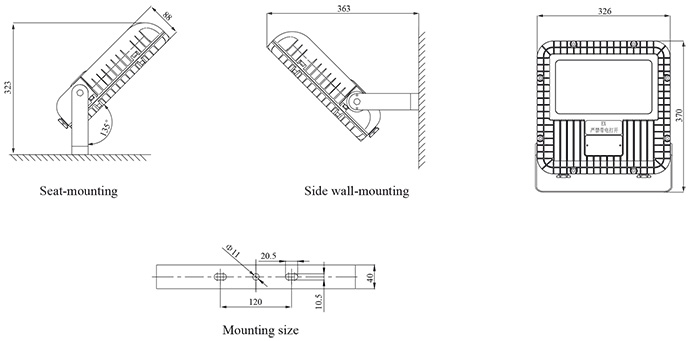

Drawing of dimension

Ordering reference
