Leistung 180-270 kW, Frequenz 50-150 kHz
  • Leistung 180-270 kW, Frequenz 50-150 kHz

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: Ambrell

Leistung 180-270 kW, Frequenz 50-150 kHz

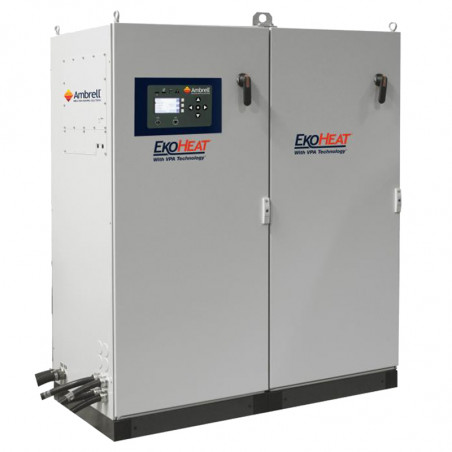

Generators for induction heating: power 180-270 kW, frequency 50-150 kHz

EKOHEAT induction heating systems for 50-150 kHz range provide reliable and repeatable solutions for high-speed heating of smaller parts where the part geometry or the coil size requires high frequency for efficient heating. Among many typical applications are heat treating of steels, shallow case depth hardening, and heating of steel, aluminum, copper or brass for brazing, shrink fitting, curing, forming and melting.

Model
Max power (kW)
Frequency (kHz)
Linie Voltage (V)
Input Max (kVA)
EKOHEAT 180/100
180
50-150
360 - 520, 3 ph
200
EKOHEAT 225/100
200
50-150
360 - 520, 3 ph
250
EKOHEAT 270/100
270
50-150
360 - 520, 3 ph
300

Generators for induction heating EKOHEAT 180kW - 100kHz
Max Power: 180 kW
Frequency: 50-150 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 200 kVA

Data Sheets:
EN | FR | DE | ES

Generators for induction heating EKOHEAT 225kW - 100kHz
Max Power: 200 kW
Frequency: 50-150 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 250 kVA

Data Sheets:
EN | FR | DE | ES

Generators for induction heating EKOHEAT 270kW - 100kHz
Max Power: 270 kW
Frequency: 50-150 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 300 kVA

Data Sheets:
EN | FR | DE | ES
