Hersteller: Ambrell

Leistung 20-35-50 kW, Frequenz 15-45 kHz

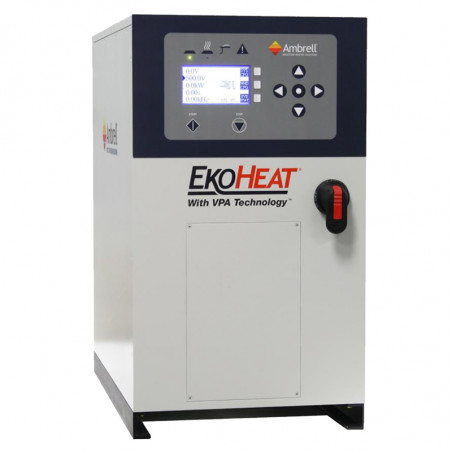

Generators for induction heating power 35-50 kW, frequency 15-45 kHz

EKOHEAT induction heating systems for 15-40 kHz range provide reliable and repeatable solutions for heating larger parts when efficient heating of your part dimensions requires higher frequencies than our 10kHz models. Among the many typical applications are heat treating of steels, preheating for forging of steel, aluminum, copper or brass, crystal growing, and heating of graphite and metal crucibles

Model*
Max Power (kW)
Frequency (kHz)
Line Voltage (V)
Input Max (kVA)
EKOHEAT 20/25
20
15-40
360 - 520, 3 ph
41
EKOHEAT 35/25
35
15-45
360 - 520, 3 ph
41
EKOHEAT 50/25
50
15-45
360 - 520, 3 ph
58

* Older versions of this series were called EKOHEAT 20/30, EKOHEAT 35/30 and EKOHEAT 50/30.

Generators for induction heating EKOHEAT 20kW - 25kHz
Max Power: 20 kW
Frequency: 15-40 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 41 kVA

Data Sheets:
EN | FR | IT | DE | ES

Generators for induction heating EKOHEAT 35kW - 25kHz
Max Power: 35 kW
Frequency: 15-40 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 41 kVA

Data Sheets:
EN | FR | IT | DE | ES

Generators for induction heating EKOHEAT 50kW - 25kHz
Max Power: 50 kW
Frequency: 15-40 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 58 kVA

Data Sheets:
EN | FR | IT | DE | ES
