Leistung 250-500 kW, Frequenz 5-15 kHz
  • Leistung 250-500 kW, Frequenz 5-15 kHz

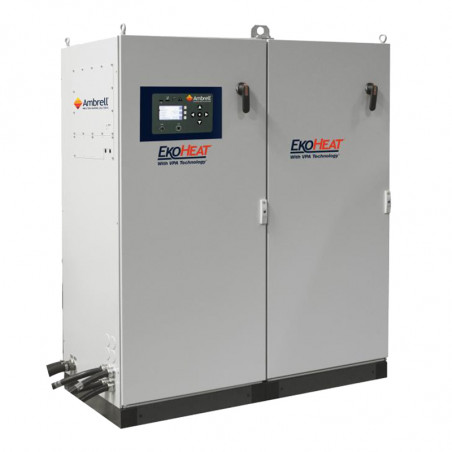

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: Ambrell

Leistung 250-500 kW, Frequenz 5-15 kHz

Induction heating generators: power 250 - 500 kW, frequency 5 - 15 kHz

EKOHEAT induction heating systems for the 5 to 15 kHz frequency range provide reliable and repeatable solutions for heating with large coils or for heating larger parts. Typical applications include heating parts that require deeper heat penetration, heat treating steel, preheating for forging of steel, aluminum, copper or brass, and melting in crucibles.

Model
Max power (kW)
Frequency (kHz)
Line Voltage (V)
Input Max (kVA)
EKOHEAT 250/10
250
5-15
360 - 520, 3 ph
290
EKOHEAT 300/10
300
5-15
360 - 520, 3 ph
346
EKOHEAT 375/10
375
5-15
360 - 520, 3 ph
435
EKOHEAT 500/10
500
5-15
360 - 520, 3 ph
580

Generators for induction heating EKOHEAT 250kW - 10kHz
Max Power: 250 kW
Frequency: 5-15 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 290 kVA

Data Sheet:

Generators for induction heating EKOHEAT 300kW - 10kW
Max Power: 300 kW
Frequency: 5-15 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 346 kVA

Data Sheets:
EN | FR | IT | DE | ES

Generators for induction heating EKOHEAT 375kW - 10kHz
Max Power: 375 kW
Frequency: 5-15 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 435 kVA

Data Sheets:
EN | FR | IT | DE | ES

Generators for induction heating EKOHEAT 500kW - 10kHz
Max Power: 500 kW
Frequency: 5-15 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 580 kVA

Data Sheets:
EN | FR | IT | DE | ES
