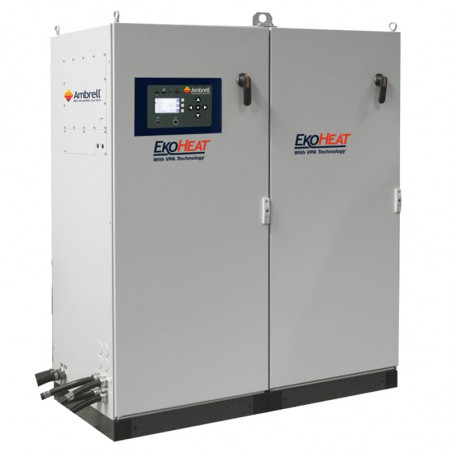

Induction heating generators: power 300-500 kW, frequency 2-6 kHz

EKOHEAT induction heating systems for 2 - 6 kHz range provide reliable and repeatable solutions for heating with large coils or for heating larger parts. Typical applications include heating of hard-to-couple parts, deeper heat penetration, crystal growing, heat treating steel, preheating for forging of steel, aluminum, copper or brass, and melting in crucibles.

Model
Max power (kW)
Frequency (kHz)
Line Voltage (V)
Input Max (kVA)
EKOHEAT 300/3
300
2 - 6
360 - 520, 3 ph
348
EKOHEAT 375/3
375
2 - 6
360 - 520, 3 ph
435
EKOHEAT 500/3
500
2 - 6
360 - 520, 3 ph
580

Generators for induction heating EKOHEAT 300kW - 3kHz
Max Power: 300 kW
Frequency: 2 - 6 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 348 kVA

Data Sheet:

Generators for induction heating EKOHEAT 375kW - 3kHz
Max Power: 375 kW
Frequency: 2 - 6 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 435 kVA

Data Sheet:

Generators for induction heating EKOHEAT 500kW - 3kHz
Max Power: 500 kW
Frequency: 2 - 6 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 580 kVA

Data Sheet:
